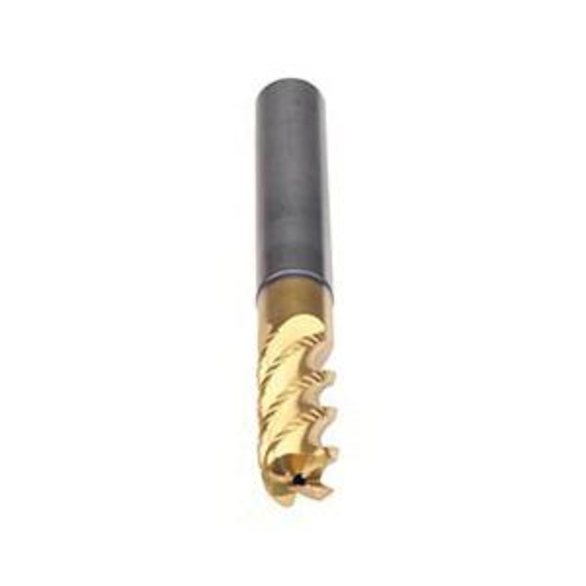

Emuge 2659Tz.008010 Corner Radius & Corner Chamfer End Mills 8mm Milling Dia, 19mm LOC, 68mm OAL, 4 Flutes, Carbide
EMUGE 2659TZ.008010
$165.52
/ EA
Out of Stock
- Mill Diameter: 8 mm
- Corner Radius: 1 mm
- Number of Flutes: 4
- Material: Carbide
- Length of Cut: 19 mm
- Shank Diameter: 8 mm
- Shank Diameter - Metric: 8 mm
- Overall Length: 68 mm
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Corner Radius - Metric: 1 mm
- Cutter Diameter: 8 mm
- Finish/Coating: TiN/TiAlN Coated
- Length of Cut - Metric: 19 mm
- Overall Length - Metric: 68 mm
- Series: TiNox-Cut 2659TZ
- Flute Type: Spiral
- Cutter Diameter - Metric: 8 mm
- Shank Type: Weldon Flat
- The TiNox-Cut series was especially developed for machining titanium alloys and nickel based alloys along with stainless steel
- Vibration dampening with variable flute spacing
- Heat and wear resistant multi-layer TiN/TiAlN - PVD coating
- Semi-finishing roughing flute profile for optimum performance
- Coolant fed (axial) design for efficient chip evacuation
- Tool shanks are held to h5 tolerance and have a roughened surface (non-polished) for greater gripping force
- Machining of difficult to cut materials
Standards/Approvals: DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For roughing applications
Emuge Corner Radius End Mill | Extra Length Square End | Series: TiNox-Cut 2659TZ | 8 mm Cutter Dia | 1 mm Corner Radius | 68 mm Overall Length | 19 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 8 mm Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Weld-On Flat Shank | Carbide | TiN/TiAlN Coated
