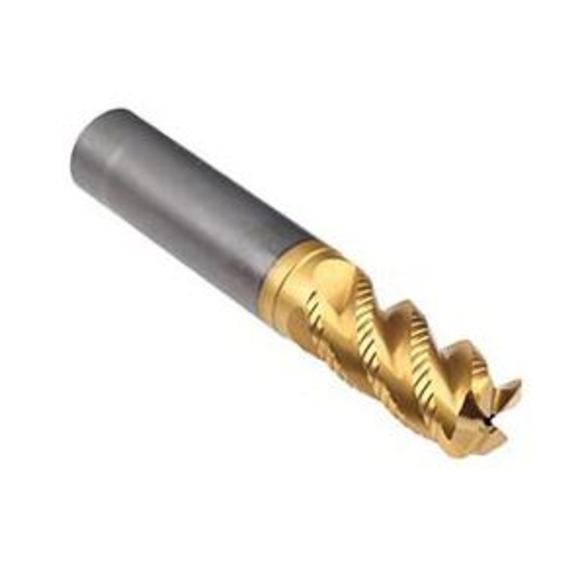

Emuge 2670Tz.012030 Corner Radius & Corner Chamfer End Mills 12mm Milling Dia, 26mm LOC, 83mm OAL, 4 Flutes, Carbide
EMUGE 2670TZ.012030
$301.01
/ EA
Out of Stock
- Mill Diameter: 12 mm
- Corner Radius: 3 mm
- Number of Flutes: 4
- Material: Carbide
- Length of Cut: 26 mm
- Shank Diameter: 12 mm
- Shank Diameter - Metric: 12 mm
- Overall Length: 83 mm
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Corner Radius - Metric: 3 mm
- Cutter Diameter: 12 mm
- Cutter Diameter - Metric: 12 mm
- Finish/Coating: TiN/TiAlN Coated
- Length of Cut - Metric: 26 mm
- Overall Length - Metric: 83 mm
- Series: TiNox-Cut 2670TZ
- Shank Type: Cylindrical
- Flute Type: Spiral
- The TiNox-Cut series was especially developed for machining titanium alloys and nickel based alloys along with stainless steel
- Heat and wear resistant multi-layer TIN/TiAlN - PVD coating
- Standard corner radius design
- Semi-finished fine roughing flute profiles for optimum performance
- Coolant fed (axial) design for efficient chip evacuation
- Tool shanks are held to h5 tolerance and have a roughened surface (non-polished) for greater gripping force
- Machining of difficult to cut materials
Standards/Approvals: DIN 6535|PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For roughing applications
Emuge Corner Radius End Mill | Standard Length Square End | Series: TiNox-Cut 2670TZ | 12 mm Cutter Dia | 3 mm Corner Radius | 83 mm Overall Length | 26 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 12 mm Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | Carbide | TiN/TiAlN Coated
