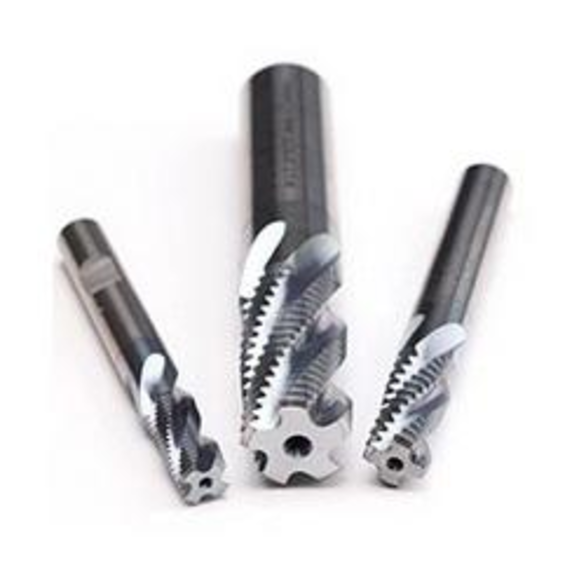

Emuge GF162326.9582 SHUR-THREAD™ GF162326 GF Style Long Spiral Flute Thread Mill With Axial Through Coolant, 11/16-16 UN Thread, 80 mm OAL, 4 Flutes, 12 mm Dia Shank
EMUGE GF162326.9582
$632.02
/ EA
Out of Stock
- Cutting Diameter - Metric: 11.9 mm
- Shank Diameter - Metric: 12 mm
- Shank Length: 1.772 in
- Thread Size: 11/16-16
- Number of Flutes: 4
- Finish/Coating: TiCN Coated
- Material: Carbide
- Thread Type: UN
- Length of Cut - Metric: 21.3 mm
- Overall Length - Metric: 80 mm
- Series: SHUR-THREAD™ GF162326
- Shank Type: Weldon Flat
- GF long length thread mill designed for UNC and UNF threads
- One tool for different thread sizes with standard thread profile (but with one pitch only)
- 30 deg right hand spiral geometry for blind and through hole applications
- Axial coolant fed construction for effective chip evacuation
- Extended length design
- TiCN coated for abrasion resistance and maximum tool life
- To avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 of the thread produced (3/4 for fine pitch threads)
Standards/Approvals: PROP65: This product contains Cobalt, a chemical known to the State of California to cause cancer
For blind and through hole applications
Emuge Spiral Flute Thread Mill | GF Style Long | Series: SHUR-THREAD GF162326 | 11/16-16 | UN | 11.9 mm Cutting Dia | 21.3 mm Length of Cut | 80 mm Overall Length | 4 Flutes | Weld-On Flat Shank | 12 mm Shank Dia | 1.772 in Shank Length | Carbide | TiCN Coated
