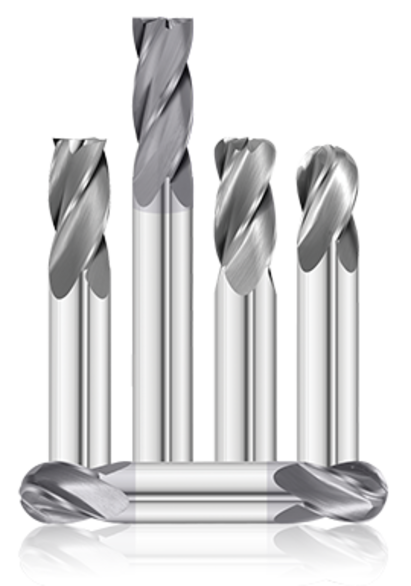

Fullerton Tool 33806 Corner Radius End Mill 0.25In Milling Dia, 0.75In LOC, 2.5In OAL, 4 Flutes, Carbide
FULTOO 33806
$37.92
/ EA
Out of Stock
- Mill Diameter: 1/4 in
- Mill Diameter - Decimal: 0.25 in
- Mill Diameter - Fractional: 1/4 in
- Mill Diameter - Metric: 6.35 mm
- Corner Radius: 0.015 in
- Number of Flutes: 4
- Material: Solid Dura-Carb
- Length of Cut: 3/4 in
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 2-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Centercutting: Centercutting
- Coolant Through: No
- Diameter - Fractional: 1/4 in
- Diameter - Metric: 6.35 mm
- End Type: Corner Radius
- Finish: TiAlN
- Finish/Coating: TiAlN-Coated
- Length of Cut - Fractional: 3/4 in
- Length of Cut - Metric: 19.05 mm
- Overall Length - Decimal: 2.5 in
- Overall Length - Fractional: 2-1/2 in
- Radius Chamfer: 0.015 in
- Series: 3200R
- Single or Double End: Single End
- Type: Center Cutting
- Diameter - Decimal: 0.25 in
- Flute Direction: Right Hand
EM 1/4X3/4X2-1/2 4F 0.015R CARBIDE TIALN
