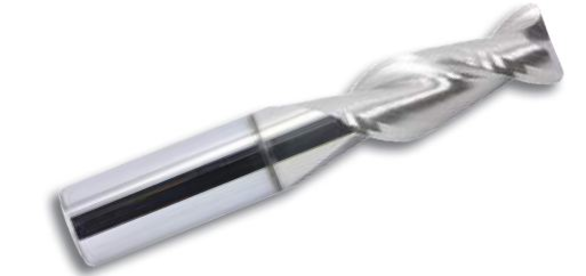

GARR 39822 142R Center Cutting Single End Mill With Neck, 10 mm Dia Cutter, 1.5 mm Corner Radius, 12 mm Length of Cut, 2 Flutes, 10 mm Dia Shank, 100 mm OAL, Alumastar® Coated
GARR 39822
$124.55
/ EA
Out of Stock
- Corner Radius: 1.5 in
- Number of Flutes: 2
- Material: Solid Carbide
- Length of Cut: 12 mm
- Shank Diameter: 0.3937 in
- Shank Diameter - Decimal: 0.3937 in
- Shank Diameter - Metric: 10 mm
- Overall Length: 100 mm
- Helix Angle: 41 deg
- Coating: ALUMASTAR
- Cutting Diameter: 1 in
- Diameter: 0.3937 in
- Diameter - Decimal: 0.3937 in
- Diameter - Metric: 10 mm
- End Type: RAD
- Finish: Alumastar
- Flat: N
- Length of Cut - Metric: 12 mm
- Neck Diameter: 0.37 in
- Neck Diameter - Decimal: 0.37 in
- Neck Diameter - Metric: 9.4 mm
- Neck Length: 23 mm
- Neck Length - Metric: 23 mm
- Overall Length - Metric: 100 mm
- Reach Length: 35 mm
- Series: 319
- Single or Double End: Singel End
- Tool Type: EM
- Type: Center Cutting
- Weight: 0.25 kg
- Specific coating engineered to repel aluminum
- Engineered to run at 750 - 2500 SFM
- For high speed machining of aluminum
- High velocity - high metal removal rate
- Use properly balanced holders
- Holds perpendicularity
- Flats can be added within 48 hours for a nominal charge
- Radius tolerance +.0005"-.0005"(+.0127mm-.0127mm)
