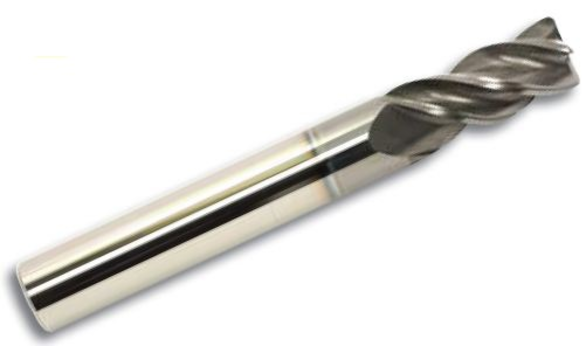

GARR 50359 V4R Center Cutting High Performance Single End Mill, 10 mm Dia Cutter, 0.75 mm Corner Radius, 22 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 70 mm OAL, AlCrN Coated
GARR 50359
$44.90
/ EA
Out of Stock
- Corner Radius: 0.75 in
- Number of Flutes: 4
- Length of Cut: 22 mm
- Shank Diameter: 0.3937 in
- Shank Diameter - Decimal: 0.3937 in
- Shank Diameter - Metric: 10 mm
- Overall Length: 70 mm
- Helix Angle: 35 deg
- Coating: AlCrN
- Cutting Diameter: 1 in
- Diameter: 0.3937 in
- Diameter - Decimal: 0.3937 in
- Diameter - Metric: 10 mm
- End Type: Corner Radius
- Finish: AlCrN
- Flat: No
- Length of Cut - Metric: 22 mm
- Overall Length - Metric: 70 mm
- Series: 306
- Single or Double End: Single End
- Tool Type: EM
- Weight: 0.16 kg
- For Titanium, Inconel and Steels ( < 40Rc)
- Special edge prep enhances tool life by 20%
- Minimizes burr on part
- Helix geometry varies over length of flutes
- Variable flute design helps with chip evacuation
- Variable rake aids in chip formation
- Corner Radius tolerance +.001"-.001" (+.025-.025mm)
