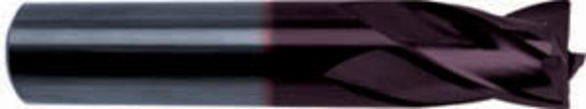

GUH 9036370140000 14mm Solid Carbide 4F End Mill Firex
GUH 9036370140000
$139.32
/ EA
Out of Stock
- Mill Diameter: 0.5512 in
- Mill Diameter - Decimal: 0.5512 in
- Mill Diameter - Metric: 14.00 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 0.7087 in
- Shank Diameter - Metric: 14.00 mm
- Overall Length: 75 mm
- Cutting Direction: Right Hand
- Helix Angle: 30 Degree
- Variable Index: No
- Chipbreaker: No
- Corner Radius Tolerance: h10
- Diameter - Decimal: 0.55118 in
- Diameter - Metric: 14 mm
- End Type: Corner Chamfer
- Extended Reach: No
- Finish: Firex
- Finish/Coating: Firex
- Flute Direction: Right Hand
- Length Type: Screw Machine
- Material Grade: Ultra Fine Micrograin
- Mill Diameter Tolerance: h10
- Series: 3637
- Series/List: 3637
- Shank Type: HA Cylindrical
- Single or Double End: Singel End
- Variable Helix: No
- Flute Type: Spiral
- Centre Cutting
Standard/Approvals:DIN 6527K
Guhring 9036370140000 0.5512 in Dia | 4 Flute | Solid Carbide | Firex | Corner Radius & Corner Chamfer End Mill
