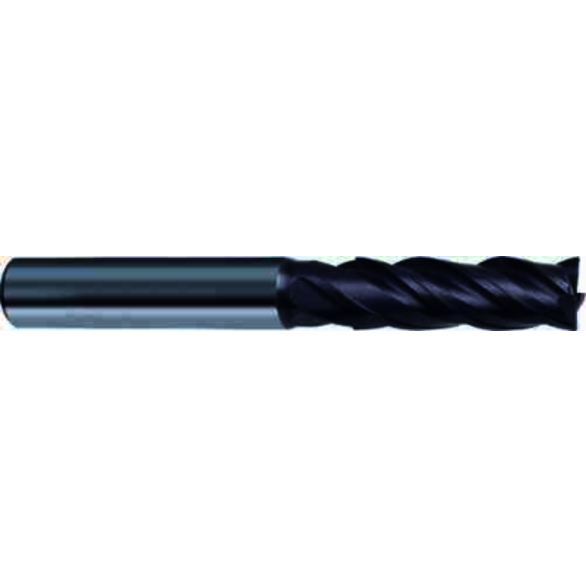

Guhring 9042500190500 3/4 in Dia, 4 Flute, Solid Carbide, Corner Radius & Corner Chamfer End Mill
GUH 9042500190500
$317.11
/ EA
Out of Stock
- Mill Diameter: 0.75 in
- Mill Diameter - Decimal: 0.7500 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 2-1/4 in
- Shank Diameter - Fractional: 3/4 in
- Overall Length: 5 in
- Cutting Direction: Right Hand
- Helix Angle: 40 Degree
- Variable Index: No
- Chipbreaker: No
- End Type: Corner Chamfer
- Extended Reach: No
- Finish/Coating: Firex
- Flute Direction: Right Hand
- Length Type: Stub
- Material Grade: K40
- Mill Diameter Tolerance: h10
- Series/List: 4250
- Shank Type: HA/HB
- Single or Double End: Singel End
- Variable Helix: Yes
- Flute Type: Spiral
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Guhring 9042500190500 3/4 in Dia | 4 Flute | Solid Carbide | Firex | Corner Radius & Corner Chamfer End Mill
