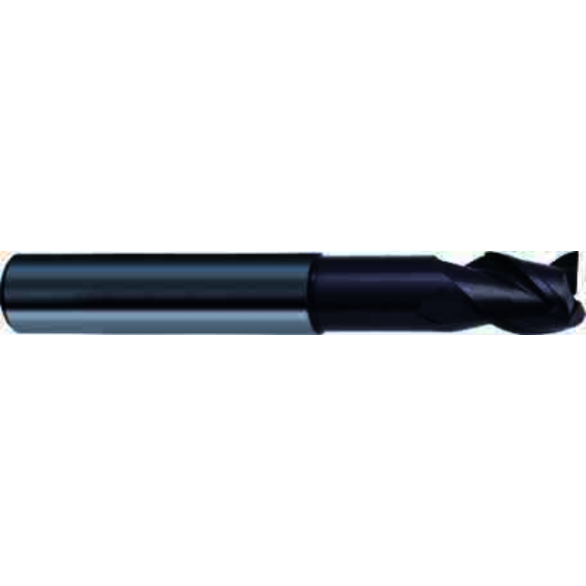

Guhring 9042540111100 7/16 in Dia, 3 Flute, Solid Carbide, Corner Radius & Corner Chamfer End Mill
GUH 9042540111100
$96.35
/ EA
Out of Stock
- Mill Diameter: 0.4375 in
- Mill Diameter - Decimal: 0.4375 in
- Mill Diameter - Fractional: 7/16 in
- Number of Flutes: 3
- Material: Solid Carbide
- Length of Cut: 1 in
- Shank Diameter - Fractional: 7/16 in
- Overall Length: 2-3/4 in
- Cutting Direction: Right Hand
- Helix Angle: 41 Degree;43 Degree;45 Degree
- Variable Index: No
- Chipbreaker: No
- End Type: Corner Chamfer
- Extended Reach: No
- Finish/Coating: Firex
- Length Type: Regular
- Material Grade: Ultra Fine Micrograin
- Mill Diameter Tolerance: e8
- Series/List: 4254
- Shank Type: HA/HB
- Single or Double End: Singel End
- Variable Helix: Yes
- Flute Type: Spiral
- Flute Direction: Right Hand
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
Guhring 9042540111100 7/16 in Dia | 3 Flute | Solid Carbide | Firex | Corner Radius & Corner Chamfer End Mill
