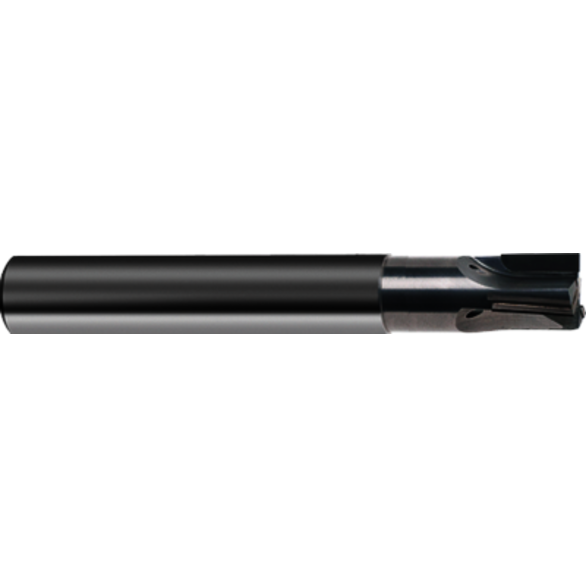

GUH 9054960160000 0.1 mm Corner Rad, 16 mm Mill Dia, 20 mm LOC, 150 mm OAL, 3 Flutes, PCD, Bright, Corner Radius & Corner Chamfer End Mill
GUH 9054960160000
$1,286.23
/ EA
Out of Stock
- Mill Diameter: 0.6299 in
- Mill Diameter - Decimal: 0.6299 in
- Mill Diameter - Metric: 16.00 mm
- Corner Radius: 0.1 mm
- Number of Flutes: 3
- Material: PCD
- Length of Cut: 12 mm
- Shank Diameter - Metric: 16.00 mm
- Overall Length: 150 mm
- Cutting Direction: Right Hand
- Variable Index: No
- Chipbreaker: No
- Corner Radius Tolerance: +0.05/-0.05 mm
- End Type: Corner Radius
- Extended Reach: Yes
- Flute Direction: Right Hand
- Length Type: Regular
- Mill Diameter Tolerance: +0.02/-0.02 mm
- Reach Length: 52.00 mm
- Series/List: 5496
- Shank Type: HA Cylindrical
- Single or Double End: Singel End
- Variable Helix: No
- Flute Type: Straight
- Finish/Coating: Uncoated
- For fibre composite plastics
- For graphite
- With internal coolant supply
- Neck clearance
- Centre cutting
- Other corner radii on request
Guhring 9054960160000 0.6299 in Dia | 3 Flute | PCD | 0.10 mm | Uncoated | Corner Radius & Corner Chamfer End Mill
