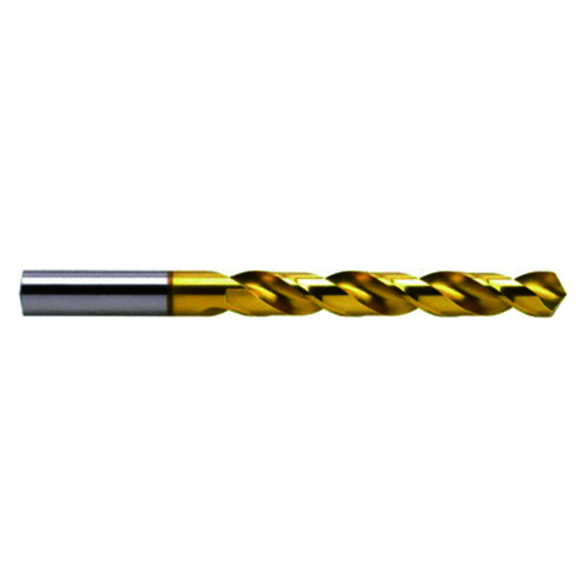

Guhring 9055190090900 0.3580 in, 118 Degree, HSCO, Jobber Length Drill Bit
GUH 9055190090900
$30.31
/ Order multiples of 5 EA
Out of Stock
- Flute Type: Spiral
- Shank Type: Straight
- Overall Length: 125.00 mm, 82 mm
- Corner Radius: 0.3 mm
- Diameter - Metric: 14 mm
- Finish: TiAlN
- Flute Length: 26 mm, 81.00 mm
- Helix Angle: 30 deg
- Point Type: 4-Facet; Split Point
- Shank Diameter - Decimal: 0.55118 in
- Shank Diameter - Metric: 9.09 mm
- Spiral Type: Regular Spiral
The GU 500 DZ drill series from Guhring is designed for the machinist who doesn’t want to settle for average results. When carbide tools are not an option, the GU 500 DZ premium cobalt drill can provide extra performance and tool life above and beyond standard high speed or general purpose cobalt drills.
- Facet split point design eliminates the need for spot drilling and reduces the thrust requirement of the tool
- Straight shank design eliminates the need for specialized holders
- Rigid core design improves rigidity of of the drill and provides more accurate hole locations
- For universal application
Standard/Approvals:DIN 338, M35
Guhring 9055190090900 0.3580 in | 118 Degree | HSCO | TiN | Right Hand | Jobber Length Drill Bit
