Guhring

Guhring 9055370103200 13/32 in, 118 Degree, Parabolic, Taper Length Drill Bit

GUH 9055370103200
$64.93 / Order multiples of 5 EA
Out of Stock

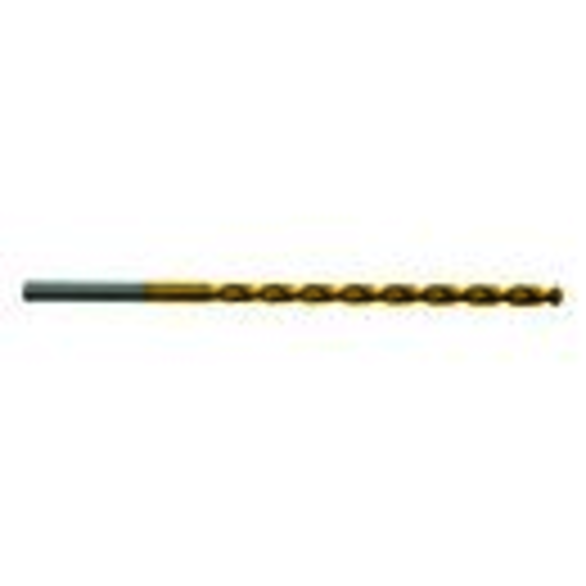

Image for GUH 9055370103200
  • Shank Type: Straight
  • Flute Length: 121.00 mm
  • Flute Type: Parabolic
  • Overall Length: 184.00 mm
  • Point Type: Split Point
  • Shank Diameter: 13/32 in
  • Shank Diameter - Fractional: 13/32 in
  • Shank Diameter - Metric: 10.32 mm
  • Titanium nitride (TiN) is a multi-purpose coating that increases chip flow in softer materials, the heat and hardness resistance allows the tool to run at higher speeds than uncoated tools
  • Increased wear-resistancespiral flutes are constructed with a higher flute angle to remove chips more easily
  • H8 tolerance on cut/shank diameter
  • 23 mm L shank
  • External coolant

Standard/Approvals:DIN 340

Application:

  • Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys

    • Guhring 9055370103200 13/32 in | 118 Degree | Parabolic | HSCO | TiN | Taper Length Drill Bit
