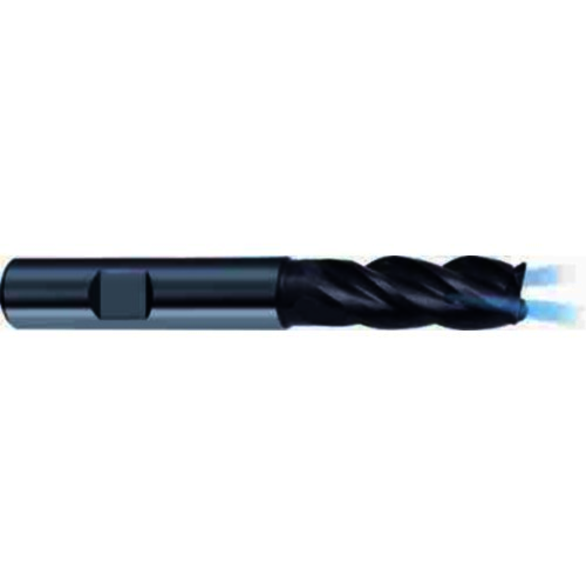

Guhring 9067010100000 10 mm Milling Dia, 22 mm LOC, 72 mm OAL, 4 Flutes, Carbide, Nano-A® Coated, Square End Mills
GUH 9067010100000
$188.86
/ EA
Out of Stock
- Mill Diameter: 10 mm
- Mill Diameter - Decimal: 0.3937 in
- Mill Diameter - Metric: 10 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 22 mm
- Shank Diameter: 10 mm
- Shank Diameter - Decimal: 0.3937 in
- Shank Diameter - Metric: 10 mm
- Overall Length: 72 mm
- Cutting Direction: Right Hand
- Helix Angle: 36 / 38 deg
- Centercutting: Centercutting
- Coolant Through: Yes
- Extended Reach: No
- Length of Cut - Metric: 22 mm
- Length Type: Regular
- Manufacturer Grade: 6701-10.000
- Overall Length - Metric: 72 mm
- Single or Double End: Singel End
- Flute Type: Spiral
- Flute Direction: Right Hand
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Standard/Approvals:6701-10.000
Application:
Guhring 9067010100000 Mill Diameter 0.3937 in | Number of Flutes 4 | Length of Cut 0.8661 in | Solid Carbide | nano-A | Square End Mill
