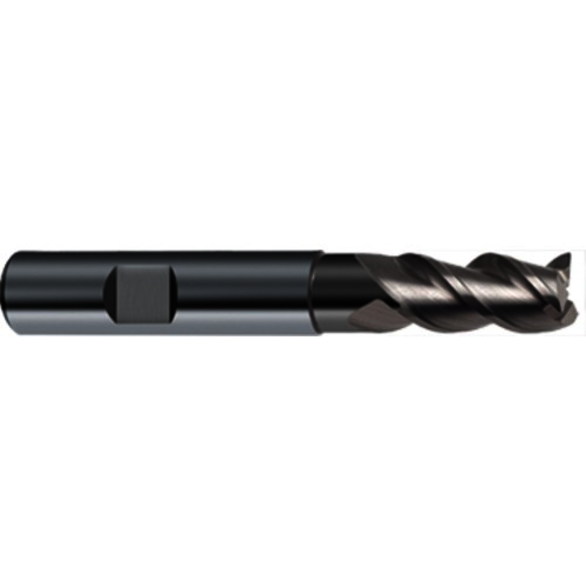

Guhring 9067020030000 3 mm Milling Dia, 8 mm LOC, 57 mm OAL, 3 Flutes, Carbide, Bright, Square End Mills
GUH 9067020030000
$44.14
/ EA
Out of Stock
- Mill Diameter: 3 mm
- Mill Diameter - Decimal: 0.1181 in
- Mill Diameter - Metric: 3 mm
- Number of Flutes: 3
- Material: Solid Carbide
- Length of Cut: 8 mm
- Shank Diameter: 6 mm
- Shank Diameter - Metric: 6 mm
- Overall Length: 57 mm
- Cutting Direction: Right Hand
- Helix Angle: 39 / 40 / 41 deg
- Centercutting: Centercutting
- Coolant Through: No
- Extended Reach: No
- Flute Direction: Right Hand
- Length of Cut - Metric: 8 mm
- Length Type: Regular
- Manufacturer Grade: 6702-3.000
- Overall Length - Metric: 57 mm
- Single or Double End: Singel End
- Flute Type: Spiral
- Finish/Coating: Uncoated
- Spiral flutes are constructed of a high flute angle to remove chips more easily
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping
Standard/Approvals:6702-3.000
Application:
Guhring 9067020030000 Mill Diameter 0.1181 in | Number of Flutes 3 | Length of Cut 0.3150 in | Solid Carbide | Bright/Uncoated | Square End Mill
