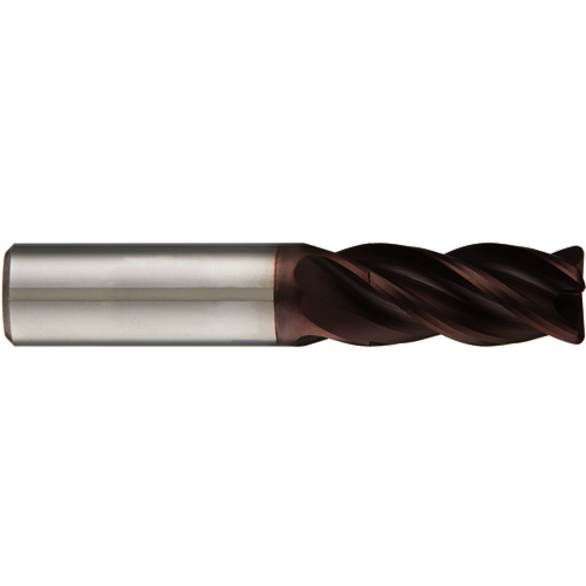

Guhring 9067590079460 5/16 in Dia, 4 Flute, Solid Carbide, Corner Radius & Corner Chamfer End Mill
GUH 9067590079460
$61.22
/ EA
Out of Stock
- Mill Diameter: 0.3125 in
- Mill Diameter - Decimal: 0.3125 in
- Mill Diameter - Fractional: 5/16 in
- Corner Radius: 0.062 in
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 3/4 in
- Shank Diameter - Fractional: 5/16 in
- Overall Length: 2-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 36 Degree;37 Degree;38 Degree
- Variable Index: No
- End Type: Corner Radius
- Extended Reach: No
- Length Type: Regular
- Material Grade: Extra Fine Micrograin
- Mill Diameter Tolerance: h10
- Series/List: RF100
- Shank Diameter Tolerance: h6
- Shank Type: HA/HB
- Single or Double End: Singel End
- Variable Helix: Yes
- Flute Type: Spiral
- Flute Direction: Right Hand
The advanced design of the RF100 Diver end mills makes them more versatile and enables them to perform all operations like drilling, ramping, slotting, roughing and finishing.
- Variable helix angle of 36 and 38 degrees in alternating flutes, eliminating chatter and vibration
- A specialized end geometry allows the Diver to plunge and ramp into workpieces; ramping up to a 45 degree plunge angle
- Optimized chip space at the cutting end and along the flutes allows for superior chip flow and high metal removal rates
- nano-Si coating is a multilayer coating with extremely high surface hardness of 5,500 (HV 0.05); reduces the effects of wear
Guhring 9067590079460 5/16 in Dia | 4 Flute | Solid Carbide | 0.0620 in | nano-Si | Corner Radius & Corner Chamfer End Mill
