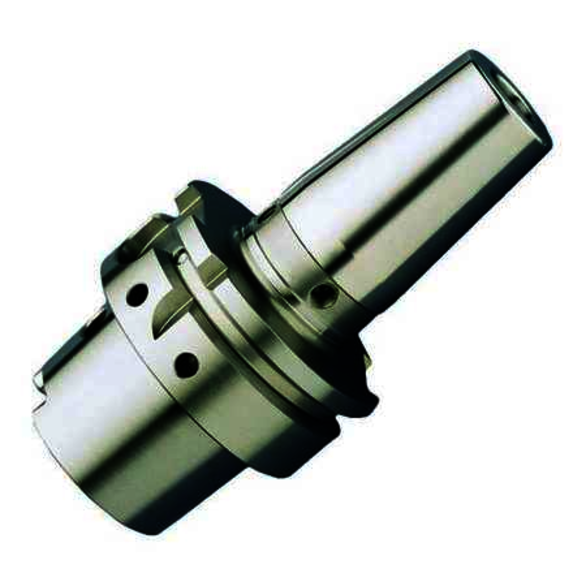

Haimer USA A10.140.25 25.00 mm, 115.00 mm, 44.00 mm, Shrink-Fit Tool Holder & Adapter
HAIMER A10.140.25
$601.00
/ EA
Out of Stock
- Nose Diameter: 44.00 mm
- Part Number: A10.140.25
- Projection: 115.00 mm
- Taper Size: HSK100A
- Through Coolant: Through Coolant
- Balanced to RPM: 25000 RPM
- Clamping Depth: 58.00 mm
- Hole Diameter: 25.00 mm
- Dual face contact
- Balanced to G2.5 at 25000 rpm or U <1 gmm
- Highest possible clamping force
- < 3 micron T.I.R
- Heat resistant hot working steel
- With threaded holes in order to balance with balancing screws
- High runout accuracy (< 3 µm)
- Extreme clamping torque by high pressing in the clamping bore
- Short chamfer
- Dynamic form reinforced shank at long tool holders
- Compromise between slimness (marginal interference contour) and rigidity
- Dual face contact
- Cooling with cool jet for an extra charge
- Cooling with cool flash for an extra charge
