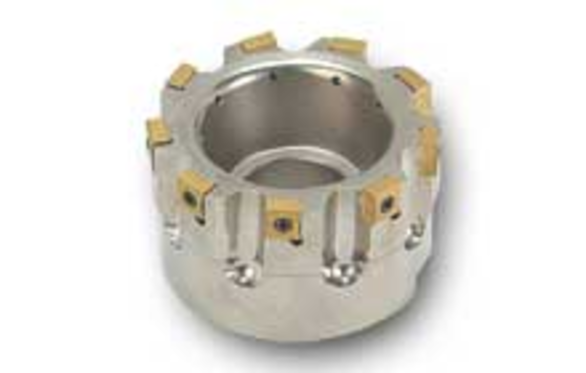

INGCUT 3040477 4 Dia 2.375 H Indexable Milling Cutter
INGCUT 3040477
$1,030.00
/ EA
Out of Stock
- Series: INGCUT 3004688
- Bore Diameter - Decimal: 1.5 in
- Bore Diameter - Fractional: 1-1/2 in
- Bore Diameter - Metric: 38.1 mm
- Diameter - Decimal: 4 in
- Height: 2.375 in
- Keyway Width: 0.625 in
- Lead Angle: 0 Degree
- Major Diameter - Decimal: 4 in
- Major Diameter - Metric: 101.6 mm
- Type: Face Mill
- Diameter - Metric: 101.6 mm
- Ø2.00-4.00" Medium-density .46" Max. depth of cut (2RH or 2LH)
- .23" Max. depth of cut at 90° (4RH or 4LH)
- Inserts with up to 8 indexes (4RH or 4LH)
- Left & right hand cutter bodies
- Insert corners: .031", .063", .125"R & .031" x 45°
Application:
Ingersoll Cutting Tools 3040477 | 0 Degree | Indexable Chamfer & Angle Face Mill
