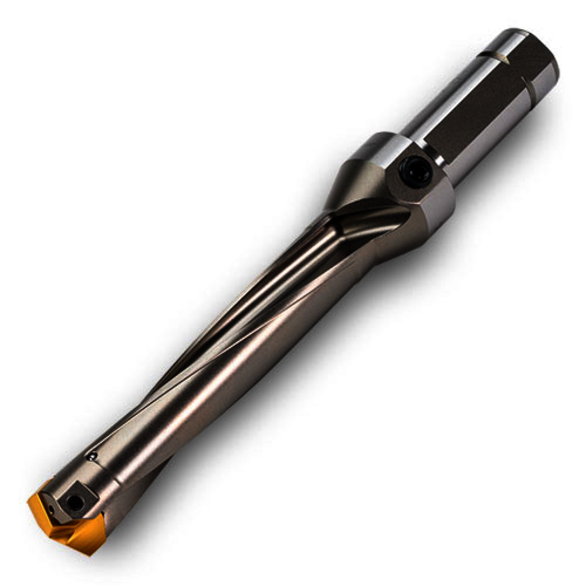

Ingersoll Cutting Tools 6146029 1.2205 (31.0 mm) to, 1.2559 (31.9 mm), 5XD, Replaceable-Tip Drill
INGCUT 6146029
$1,157.94
/ EA
Out of Stock
- Maximum Drill Depth: 5XD
- Shank Diameter - Decimal: 1.250 in
- Insert Style: TD
- Coolant Through: Yes
- Depth Ratio: 5xD
- Diameter - Decimal: 1.2205 in
- Diameter - Metric: 31 mm
- Diameter Range: 1.2205-1.2559 in
- Extension Length: 8.4724 in
- Flute Length: 6.30 in
- Overall Length: 11.6224 in
- Series: LD 5:1 Universal Inch Shank
- Shank Length: 3.16 in
- Shank Type: Universal
- Replaceable Tipped Drill Bodies L:D Ratio - 5:1
- Coolant Thru
- Holds +.002/-.000 on Hole Diameter
- Extended Length Shank For Maximum Clamping Surface
- Ideal For Lathe Applications
Applications:
Ingersoll Cutting Tools 6146029 1.2205 (31.0 mm) to | 1.2559 (31.9 mm) | 5XD | 5XD | 1.250 | Replaceable-Tip Drill
