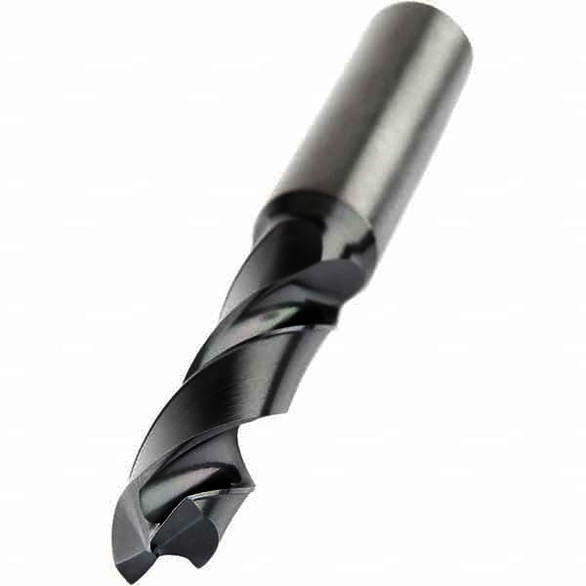

Kennametal 6782433 0.1250 in Drill Bit Size, 0.9055 in Flute Length, 2.4803 in OAL, 2 Flutes, Carbide, Screw Machine Length Drill Bit
KENNAM 6782433
$128.31
/ EA
Out of Stock
- Drill Bit Size - Decimal: 0.125 in
- Drill Bit Size - Fractional: 1/8 in
- Drill Bit Size - Metric: 3.175 mm
- Drill Bit Material: Carbide
- Shank Type: Straight
- Overall Length: 2.4803 in
- Drill Point Length: 0.0287 in
- Finish: TiN/AlTiN
- Finish/Coating: TiN/AlTiN
- Flute Length: 0.9055 in
- Flute Type: Helical
- Grade: KCP15B
- Hand of Tool: R - Right
- Helix Angle: 26.507 deg
- Number of Flutes: 2
- Point Angle: 140 deg
- Point Length: 0.0287 in
- Shank Diameter: 3/16 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.7625 mm
- Shank Length: 1.437 in
- Shank Diameter - Decimal: 0.1875 in
KENNAM 6782433 | Kennametal Screw Machine Length Drill Bit | High Performance | Straight Shank | Helical Flute | Series HPX | 0.125 in | 23 mm Flute Length | 63 mm Overall Length | 3XD Flute Length x Diameter Ratio | 3/16 in Shank Diameter | 17.4 mm Maximum Drill Depth | 36.5 mm Shank Length | 0.0287 in Point Length | 2 Flutes | Grade KCP15B | Solid Carbide | 140 deg Point Angle | TiN/AlTiN | Right Hand Direction of Cut | Yes Coolant Through | ANSI Code K224A01250HPX | For It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
