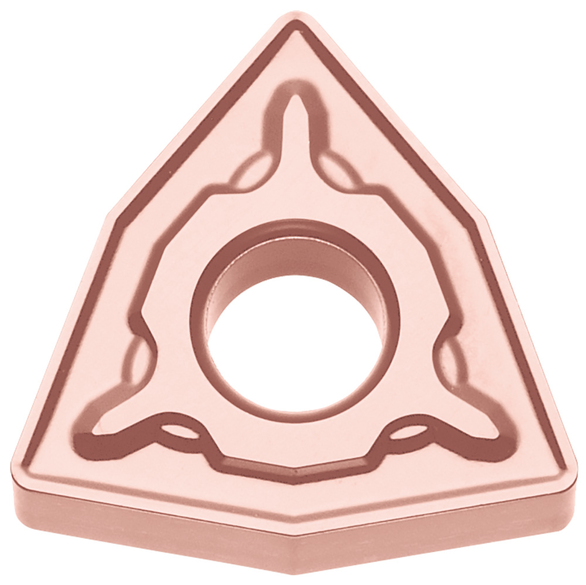

KYOCERA WNMG432PHCA320 2-Sided Turning Insert, ANSI Code: WNMG432PHCA320, WNMG Insert, Material Grade: K, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron, Carbide, Manufacturer's Grade: CA320
KYOIND TME08545
$10.30
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN/Al2O3 Coated
- Insert Style: WNMG
- Insert Size: 432
- Material: Carbide
- Manufacturer's Grade: CA320
- Chipbreaker: PH
- Corner Radius - Fractional: 1/32 in
- Cutting Direction: Neutral
- Finish: TiCN/Al2O3
- Hole Diameter: 0.203 in
- Included Angle: 80 deg
- Inscribed Circle - Fractional: 1/2 in
- Inscribed Circle Size: 0.5 in
- ISO Code: WNMG080408PH CA320
- Material Grade: K
- Rake: Negative
- Seat Size: 08
- Shape: Trigon
- Thickness - Fractional: 3/16 in
- Type: 2-Sided
- Weight: 0.24 lbs
Standards:
ISO Code WNMG080408PH
ISO Code WNMG080408PH
