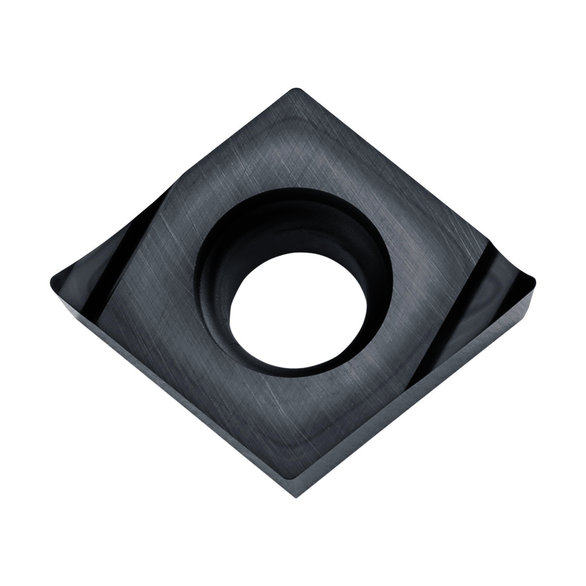

KYOCERA CCGT32505LA3KW10 ISOI 2-Cutting Edge Indexable Turning Insert With 1-Sided Chipbreaker, Hole and 40 to 60 deg Countersink, ANSI Code: CCGT32505LA3KW10, CCGT Insert, Material Grade: N, S, K, #32505 Insert, Diamond Shape, 09 Seat, Positive Rake
KYOIND TWE04511
$19.82
/ EA
- Finish/Coating: Uncoated/WC/Co Coated
- Insert Style: CCGT
- Insert Size: #32505
- Material: Carbide
- Thickness: 0.1563 in
- Corner Radius: 0.0079 in
- Manufacturer's Grade: KW10
- Chipbreaker: A3
- Hole Diameter: 0.1732 in
- Included Angle: 80 deg
- Inscribed Circle - Fractional: 3/8 in
- ISO Code: CCGT09T302L-A3
- Material Grade: N, S, K
- Rake: Positive
- Relief Angle: 7 deg
- Seat Size: 09
- Series: ISOI
- Shape: Diamond
- Type: 2-Cutting Edge
INSERT CCGT32505LA3 KW10 CARBIDE TURNING
