Lyndex Nikken

Lyndex-Nikken PS-17 BT30 Taper, M12x1.75 Thread, 30 Degree Angle Radius, Retention Knob & Socket

LYN-PS-17
$55.00 / EA
Out of Stock

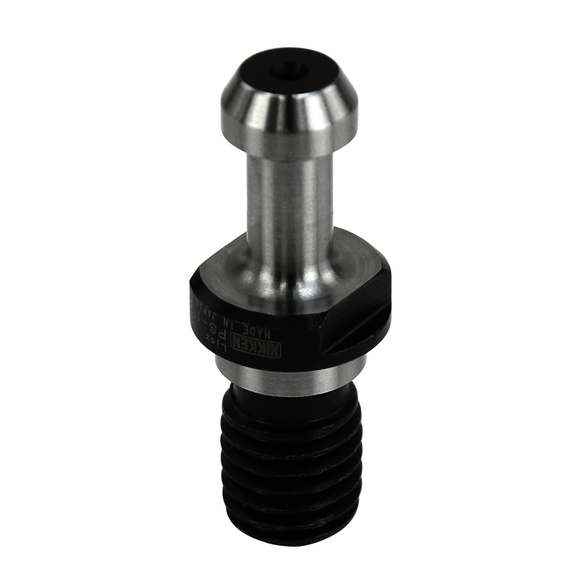

Image for LYN-PS-17
  • Angle: 60 deg
  • Knob Diameter: 0.43 in
  • Thread Size: M12P1.75
  • Type: BT Retention Stud
  • Knob to Flange Length: 0.709 in
  • Neck Diameter: 0.492 in
  • Overall Length: 0.905 in
  • Style: J
  • Class 4g 6g metric thread
  • Magnetic particle crack tested
  • Tensile and shear requirements per JIS 6339
  • All locations of the pullstud that make contact with ground spindle mechanism components are ground
  • Base of pullstud flange is ground to assure perpendicular alignment between pullstud and taper of toolholder
  • Ground pilot and tight pitch diameter tolerance help maintain accurate concentricity between threads and knob limiting the expansion or flaring of the small end of the taper

Lyndex-Nikken PS-17 BT30 Taper | M12x1.75 Thread | 30 Degree Angle Radius | 0.4330 in Knob Dia | Retention Knob & Socket
