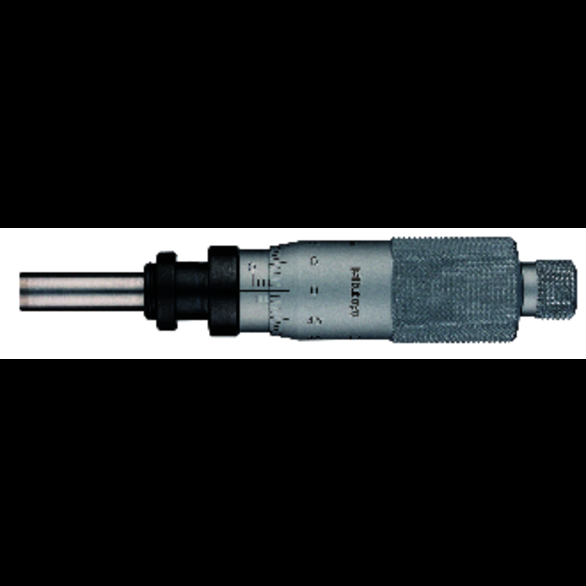

Mitutoyo 110-101 Metric Extra-Fine Feed Micrometer Head With Clamp Nut, 0 to 2.5 mm, Graduations: 0.001 mm, Carbide Tip
MITAME 110-101
$498.00
/ EA
Out of Stock
- Graduation: 0.001 mm
- Graduations: 0.001 mm
- Range: 0 - 2.5 mm
The Mitutoyo extra-fine feed micrometer head with differential screw translator allows fine spindle movements for high-resolution measurements and precision positioning.
- Available in Metric and Inch models
- Mic head has a 21mm / .827in thimble diameter
- Metric spindle ranges available are 1mm, 2.5mm, and 13mm
- Inch spindle ranges available are .02, .05in, and .5in
- Spindle diameters are 6.35mm / .25in and 8mm / .315in
- Mic head total lengths (at stroke end) are 7mm / 5.22in, 110.2mm / 4.34in, and 110.5mm / 4.35in
- Spindle faces are constructed of carbide and have lapped surfaces for more accurate measurements over time and are available in flat or spherical
- Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
Mitutoyo 110-101 0 mm to 2.50 mm Measurement | 0.8270 in Thimble Dia. | Accurate upto - ±5 μm | Mechanical Micrometer Head
