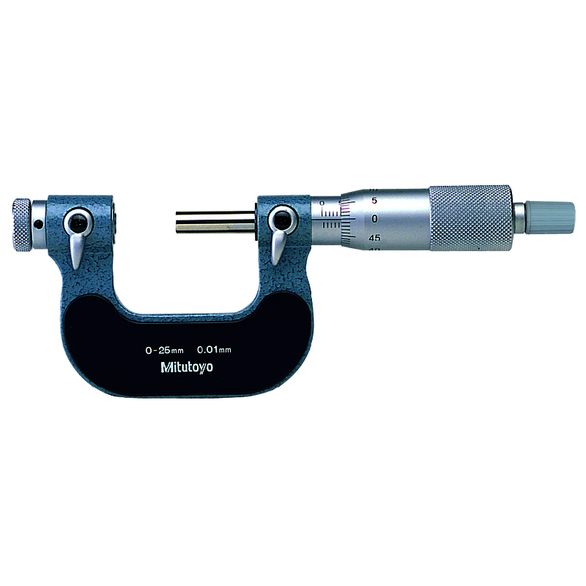

Mitutoyo 126-135 Metric Screw Thread Micrometer, 250 to 275 mm Measuring, Graduations 0.01 mm, High Grade Steel Anvil
MITAME 126-135
$1,660.00
/ EA
Out of Stock
- Graduation: 0.01 mm
- Graduations: 0.01 mm
- Range: 250 - 275 mm
The screw thread micrometer interchangeable tips have 250 to 275 mm and should be used with optional, interchangeable, anvils/spindle-tips that allows measuring a wide range of metric/unified and Whitworth screw-thread pitch diameters.
- Anvils and spindle tips are interchangeable in matching pairs to enable measurement of Metric/Unified or Whitworth threads
- Direct reading of screw pitch diameter
- Equipped with Ratchet Stop for constant measuring force
- Interchangeable anvils/spindle tips are optional
Includes:Metric (Unified) 60 deg Setting Standard
Standard/Approvals:TUV Certified
Mitutoyo 126-135 250.000 mm to 275.00 mm Measurement | Accurate upto - ±7 μm | 0.0100 mm | Mechanical | Screw Thread Micrometer
