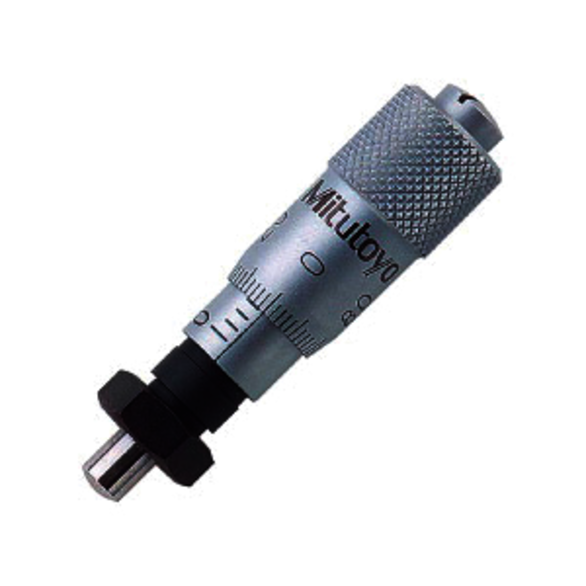

Mitutoyo 148-143 Metric Fine Spindle Feeding Micrometer Head With Clamp Nut, 0 to 6.5 mm, Graduations: 0.002 mm

The Mitutoyo fine spindle feeding micrometer head with 0.1mm/rev is ideal for extra-fine adjustments and positioning of a work stage, parts holder or machine.

• Models are available with 6mm or 9.5mm mounting stem diameters
• Spindle diameters available are 6.35mm / .25in, 5mm /.197in, and 3.5mm /.137in
• Mic head total lengths (at stroke end) are 43.4mm / 1.70in, 48.5mm / 1.90in, and 61.5mm / 2.42in
• Spherical spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel
• Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
• External dimensions are compatible with conventional 0.5mm pitch threads
• Spindle screw threads are precision machined for incredibly precise movements

Mitutoyo 148-143 0 mm to 6.50 mm Measurement | Accurate upto - ±2 μm | Mechanical Micrometer Head
