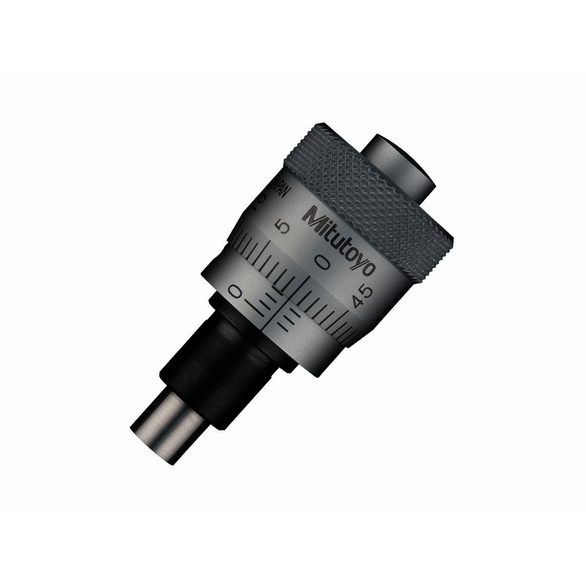

Mitutoyo 148-307 Metric Large Diameter Micrometer Head, 0 to 13 mm, Graduations: 0.01 mm

The Mitutoyo large thimble diameter micrometer heads provide highly accurate measurements and adjustments that are easier to read. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.

• Available in Metric and Inch models
• Mounting stem diameter is 9.5mm / .375in
• Spindle diameter is 6.5mm / .256in
• Mic head total lengths (at stroke end) are 48.5mm / 1.90in and 68mm / 2.67in
• Three types of thimble diameters are available for each Metric and Inch models
• Spindle faces are flat and have lapped surfaces and are constructed of ultra-hard SKS3 steel
• Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
• Spindle screw threads are precision machined for incredibly precise movements

Mitutoyo 148-307 0 mm to 13.00 mm Measurement | 15.00 mm Thimble Dia. | Accurate upto - ±2 μm | Mechanical Micrometer Head
