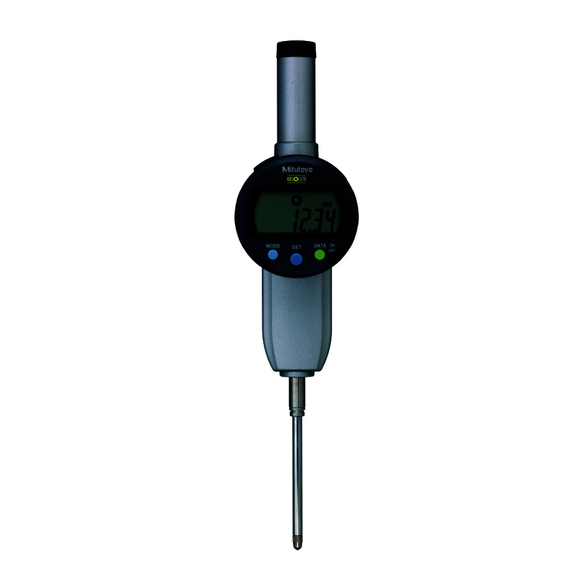

Mitutoyo ABSOLUTE® 543-494B ID-C 543 Flat Back Metric Standard Digimatic Indicator, 50.8 mm Measuring, 0.04 mm Accuracy, 0.01 mm Resolution, LCD Display, Stainless Steel

• The Mitutoyo ABS digital ID-C standard-type digital indicators provide up to a 12.7mm / .5in range in a compact design that is easy to use and read. The ID-C indicator’s face can rotate 330° to enable easier readings on the large 9mm LCD display from nearly any angle
• Large push buttons provide direct, easy access to all of the indictor’s functions, and the positive/negative count from the spindle’s up/down movement can be toggled
• The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multipoint measurements
• Similar in size to standard Series 2 dial indicators
• Available in Metric and Inch/Metric models
• Available with SPC output capabilities
• G0/No-Go display lights red or green when upper and lower tolerances are set
• Internal calculations using the simple formula of [F(x)=Ax] are available
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for quick and easy data management in real time
• Functions include Origin set, zero set, Go/No-Go judgement, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
• Unlimited response speed eliminates over-speed errors
• IP42 for protection against objects greater than 1mm and water supplied in a fitted plastic case

Standard/Approvals:SPC, ISO/JIS

Mitutoyo 543-494B ≤ 2.3 N Capacity | 0.01 mm Resolution | Accurate Up to ±0.04 mm | Digital Tension & Compression Force Gage
