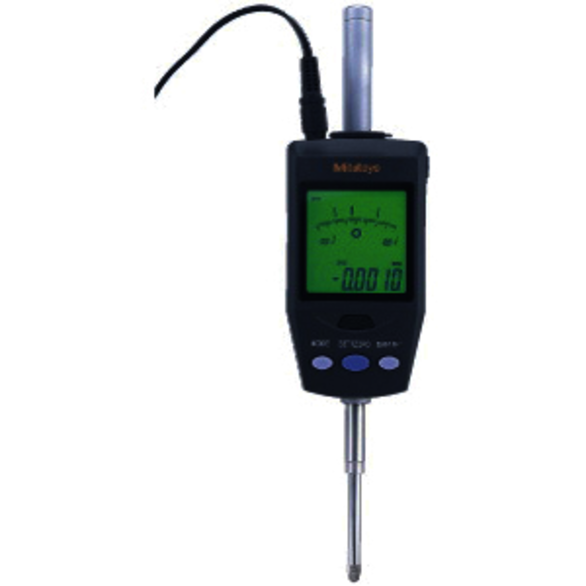

Mitutoyo ABSOLUTE® 543-561A ID-H 543 Metric Digimatic Indicator, 0 to 30.4 mm Measuring, 0.0015 mm Accuracy, 0.0005/0.001 mm Resolution, LCD Display

• The Mitutoyo ABS ID-F Series digital indicator features a back-lit, easy-to-read LCD screen that changes from green to red when user-defined tolerances are exceeded
• This allows Go/No-Go judgments much faster and easier without sacrificing accuracy or reliability
• The ID-F indicator has six user-selectable resolutions with a maximum resolution of 0.001mm/.0005in and an accuracy of +/ 0.003mm/.00012in
• An integrated analog bar indicator handles upper and lower limit approaching and zero approaching
• Available in Metric and Inch/Metric models
• Inch Metric model ranges: 0-25.4mm/0-1in, 0-50.8mm/0-2in
• Metric only model ranges: 0-25mm and 0-50mm
• Available with SPC output capabilities
• Go/No-Go judgements are performed by setting the upper and lower tolerances; screen turns from green to red when a tolerance is exceeded
• ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
• Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
• SPC output function allows for easier, faster data management in real time
• Functions include: Origin set/preset, zero-set, Go/No-Go judgement, max/min value hold, analog bar, runout measurement, resolution switching, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
• Alarm: Low voltage, counting value composition error, over-flow error and tolerance limit setting error
• Unlimited response speed eliminates over-speed errors
• Sealed housing meets IP30 rating for dust and water protection supplied in a fitted plastic case

Includes:120V AC adaptor

Standard/Approvals:SPC

Mitutoyo 543-561A ≤ 2.0 N Capacity | 0.00100; 0.00005 mm Resolution | Accurate Up to ±0.0015 mm | Digital Tension & Compression Force Gage
