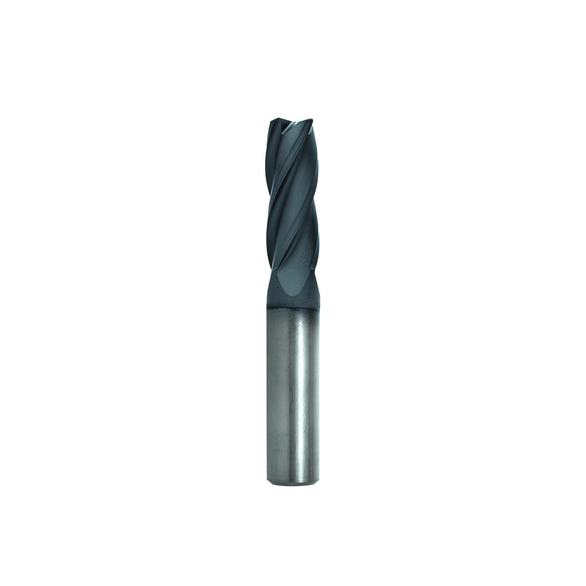

Niagara Cutter 17000004 DIACR430 Center Cutting Medium Length Single End End Mill, 3/16 in Dia Cutter, 0.02 in Corner Radius, 5/8 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, DiamondPlus™ CVD Coated
NIACUT 17000004
$140.27
/ EA
Out of Stock
- Mill Diameter: 3/16 in
- Mill Diameter - Decimal: 0.1875 in
- Mill Diameter - Fractional: 3/16 in
- Mill Diameter - Metric: 4.7625 mm
- Corner Radius: 0.02 in
- Number of Flutes: 4
- Material: Carbide
- Length of Cut: 5/8 in
- Shank Diameter: 3/16 in
- Shank Diameter - Decimal: 0.1875 in
- Shank Diameter - Fractional: 3/16 in
- Shank Diameter - Metric: 4.7625 mm
- Overall Length: 2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Variable Index: No
- Centercutting: Center Cutting
- Chipbreaker: No
- Corner Radius - Decimal: 0.02 in
- Cutter Diameter: 3/16 in
- Diameter: 3/16 in
- Diameter - Fractional: 3/16 in
- End Type: Corner Radius
- Finish: CVD Diamond
- Finish/Coating: Diamond
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.625 in
- Length of Cut - Fractional: 5/8 in
- Length of Cut - Metric: 15.875 mm
- Overall Length - Decimal: 2 in
- Overall Length - Metric: 50.8 mm
- Series: DIACR430
- Shank Type: Cylindrical
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Cutter Diameter - Fractional: 3/16 in
- Diameter - Decimal: 0.1875 in
- Type: Center Cutting;High Performance
- Diameter - Metric: 4.762 mm
General Purpose, Profiling and Slotting
Niagara Cutter End Mill | Center Cutting Medium Length Single End | Series: DIACR430 | 3/16 in Cutter Dia | 0.02 in Corner Radius | 2 in Overall Length | 5/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/16 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: DIACR430-0.188-D3-R020.0-Z4 | ISO Code: DIACR430.188D3R020.0Z4 | Solid Carbide | DiamondPlus CVD Coated
