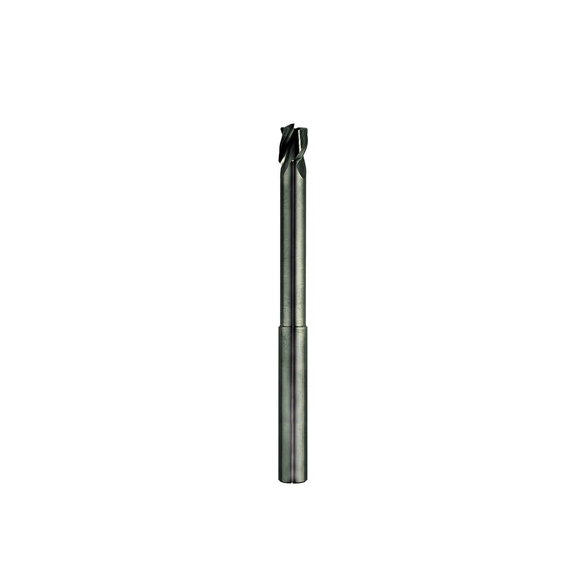

Niagara Cutter 17000065 Elite SN335 Center Cutting High Performance Single End Stub Length End Mill, 3/8 in Dia Cutter, 0.02 in Corner Radius, 1/2 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 4 in OAL, AlTiN Coated
NIACUT 17000065
$114.08
/ EA
Out of Stock
- Mill Diameter: 3/8 in
- Mill Diameter - Decimal: 0.375 in
- Mill Diameter - Fractional: 3/8 in
- Mill Diameter - Metric: 9.525 mm
- Corner Radius: 0.02 in
- Number of Flutes: 3
- Material: Carbide
- Length of Cut: 1/2 in
- Shank Diameter: 3/8 in
- Shank Diameter - Decimal: 0.375 in
- Shank Diameter - Fractional: 3/8 in
- Shank Diameter - Metric: 9.525 mm
- Overall Length: 4 in
- Cutting Direction: Right Hand
- Helix Angle: 35 deg
- Variable Index: No
- Centercutting: Center Cutting
- Chipbreaker: No
- Corner Radius - Decimal: 0.02 in
- Cutter Diameter: 3/8 in
- Cutter Diameter - Fractional: 3/8 in
- Diameter: 3/8 in
- Diameter - Fractional: 3/8 in
- End Type: Corner Radius
- Finish: AlTiN
- Finish/Coating: AlTiN
- Flute Direction: Right Hand
- Length of Cut - Decimal: 0.5 in
- Length of Cut - Fractional: 1/2 in
- Length of Cut - Metric: 12.7 mm
- Neck Diameter: 0.36 in
- Neck Diameter - Decimal: 0.36 in
- Neck Diameter - Metric: 9.144 mm
- Overall Length - Decimal: 4 in
- Overall Length - Metric: 101.6 mm
- Series: SN335
- Shank Type: Weldon Flat
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Diameter - Decimal: 0.375 in
- Type: Center Cutting;High Performance
- Diameter - Metric: 9.525 mm
Slotting, Pocketing and Long Reach Peripheral Milling
Niagara Cutter End Mill | Center Cutting High Performance Single End Stub Length | Series: Elite SN335 | 3/8 in Cutter Dia | 0.02 in Corner Radius | 4 in Overall Length | 1/2 in Maximum Depth of Cut | 3 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 35 deg Helix Angle | Weldon Flat Shank | ANSI Code: SN335-0.375-E1-R020.3-Z3 | ISO Code: SN335.375E1R020.3Z3 | Solid Carbide | AlTiN Coated
