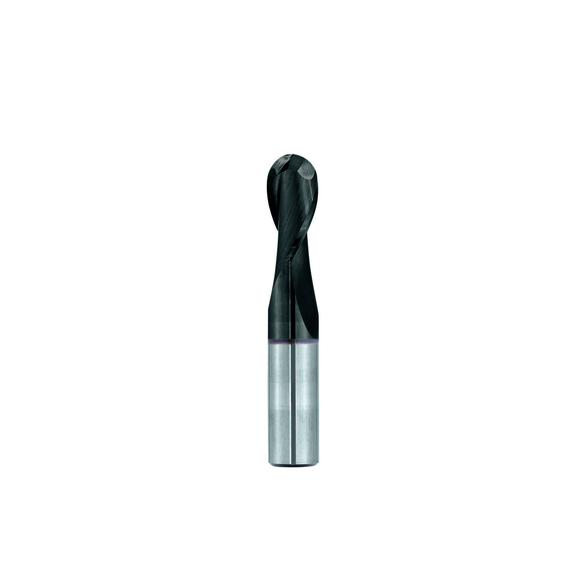

Niagara Cutter 17001457 CB230 Ball End Center Cutting Extended Reach Single End End Mill, 1/2 in Dia Cutter, 3 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 6 in OAL, TiAlN Coated

• Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
• Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
• 90 deg cutting edge
• 1.781 in L minimum clamping
• 30 deg axial rake
• 10 deg radial rake
• Ball nose end mills create contoured surfaces
• Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
• Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material
• D - Cylindrical tool shape

For general machining of most materials

Niagara Cutter End Mill | Ball End Center Cutting Extended Reach Single End | Series: CB230 | 1/2 in Cutter Dia | 6 in Overall Length | 1/2 in | 3 in Maximum Depth of Cut | 2 Flutes | Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: CB230-0.500-D6-B.0-Z2 | ISO Code: CB230.500D6B.0Z2 | Solid Carbide | TiAlN Coated
