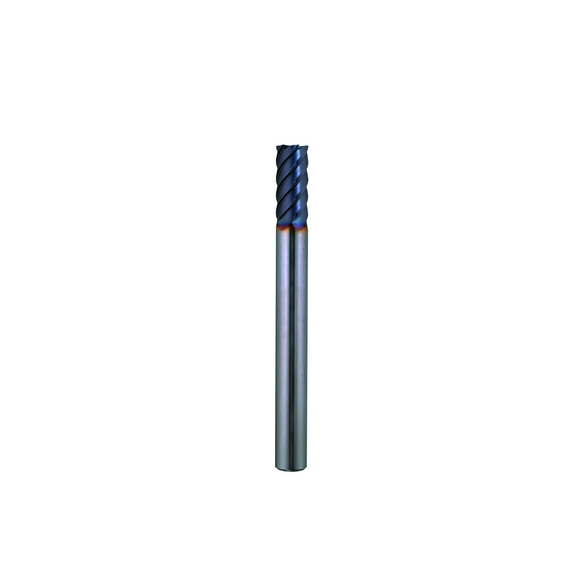

Niagara Cutter 17004769 MZ645 Center Cutting Medium Length Single End Square End End Mill, 1/8 in Dia Cutter, 3/8 in Length of Cut, 6 Flutes, 1/4 in Dia Shank, 3 in OAL, AlTiN Coated
NIACUT 17004769
$134.36
/ EA
Out of Stock
- Mill Diameter: 1/8 in
- Number of Flutes: 6
- Length of Cut: 3/8 in
- Material: Solid Carbide
- Finish/Coating: AlTiN Coated
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 3 in
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Cutter Diameter: 1/8 in
- Diameter: 0.197 in
- Diameter - Decimal: 0.197 in
- Length of Cut - Fractional: 3/8 in
- Overall Length - Decimal: 3 in
- Series: MZ645
- Type: Center Cutting
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/8 in
- Diameter - Fractional: 1/8 in
- Diameter - Metric: 3.175 mm
- Shank Type: Cylindrical
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
- 90 deg cutting edge
- 1.417 in L minimum clamping
- 45 deg axial rake
- 1 deg radial rake
- 10 deg neck
- 35 deg helix angle provides increased cutting action and chip evacuation compared to the standard 30 deg helix
- F - Step tool shape
- Ideal for peripheral milling of hard steels up to 62HRc
Peripheral Milling
Niagara Cutter End Mill | Center Cutting Medium Length Single End Square End | Series: MZ645 | 1/8 in Cutter Dia | 3 in Overall Length | 1/4 in | 3/8 in Maximum Depth of Cut | 6 Flutes | Spiral Flute | 1/4 in Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | ANSI Code: MZ645-0.125-F3-S.0-Z6 | ISO Code: MZ645.125F3S.0Z6 | Solid Carbide | AlTiN Coated
