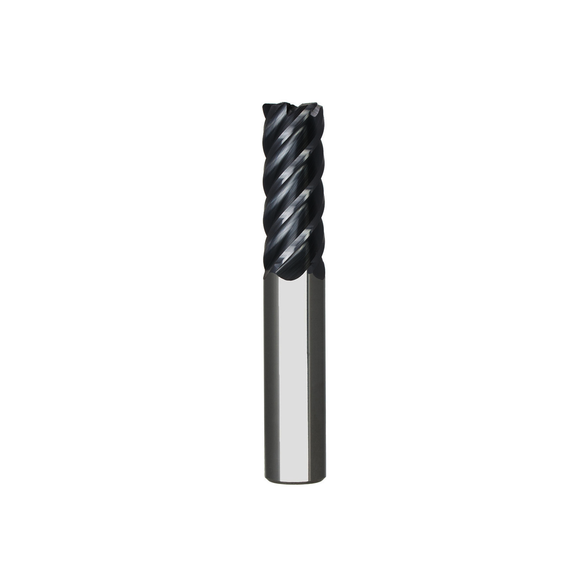

Niagara Cutter 17007037 Elite S545R Center Cutting High Performance Medium Length Single End End Mill, 1/2 in Dia Cutter, 0.09 in Corner Radius, 1-1/4 in Length of Cut, 5 Flutes, 1/2 in Dia Shank, 3 in OAL, AlTiN Coated
NIACUT 17007037
$124.22
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Mill Diameter - Metric: 12.7 mm
- Corner Radius: 0.09 in
- Number of Flutes: 5
- Material: Carbide
- Length of Cut: 1-1/4 in
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Overall Length: 3 in
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Variable Index: No
- Centercutting: Center Cutting
- Chipbreaker: No
- Corner Radius - Decimal: 0.09 in
- Cutter Diameter: 1/2 in
- Diameter: 1/2 in
- End Type: Corner Radius
- Finish/Coating: AlTiN
- Flute Direction: Right Hand
- Flute Type: Spiral
- Length of Cut - Decimal: 1.25 in
- Length of Cut - Fractional: 1-1/4 in
- Length of Cut - Metric: 31.75 mm
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Series: S545R
- Shank Type: Cylindrical
- Single or Double End: Single End
- Type: Center Cutting;High Performance
- Cutter Diameter - Fractional: 1/2 in
- Diameter - Fractional: 1/2 in
- Diameter - Metric: 12.7 mm
- Diameter - Decimal: 0.5 in
- Finish: AlTiN
- Variable Helix: No
- Eccentric primary relief
For peripheral finish
Niagara Cutter End Mill | Center Cutting High Performance Medium Length Single End | Series: Elite S545R | 1/2 in Cutter Dia | 0.09 in Corner Radius | 3 in Overall Length | 1-1/4 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | ANSI Code: S545R-0.500-D3-R090.0-Z5 | ISO Code: S545R.500D3R090.0Z5 | Solid Carbide | AlTiN Coated
