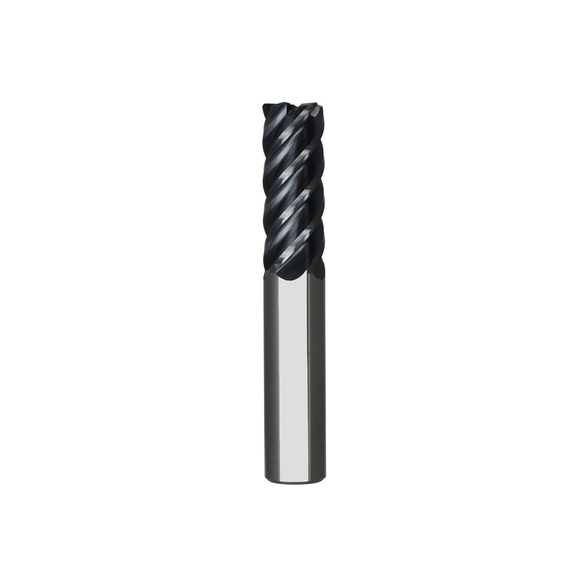

Niagara Cutter 17007063 Elite S545R Center Cutting High Performance Short Length Single End End Mill, 3/4 in Dia Cutter, 0.03 in Corner Radius, 1-5/8 in Length of Cut, 5 Flutes, 3/4 in Dia Shank, 4 in OAL, AlTiN Coated
NIACUT 17007063
$267.02
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Mill Diameter - Decimal: 0.75 in
- Mill Diameter - Fractional: 3/4 in
- Mill Diameter - Metric: 19.05 mm
- Corner Radius: 0.03 in
- Number of Flutes: 5
- Material: Carbide
- Length of Cut: 1-5/8 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Overall Length: 4 in
- Cutting Direction: Right Hand
- Helix Angle: 45 deg
- Variable Index: No
- Centercutting: Center Cutting
- Chipbreaker: No
- Corner Radius - Decimal: 0.03 in
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Diameter: 3/4 in
- Diameter - Fractional: 3/4 in
- End Type: Corner Radius
- Finish: AlTiN
- Finish/Coating: AlTiN
- Flute Direction: Right Hand
- Length of Cut - Decimal: 1.625 in
- Length of Cut - Fractional: 1-5/8 in
- Length of Cut - Metric: 41.275 mm
- Overall Length - Decimal: 4 in
- Overall Length - Metric: 101.6 mm
- Series: S545R
- Shank Type: Cylindrical
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Diameter - Metric: 19.05 mm
- Diameter - Decimal: 0.75 in
- Type: Center Cutting;High Performance
- Eccentric primary relief
For peripheral finish
Niagara Cutter End Mill | Center Cutting High Performance Short Length Single End | Series: Elite S545R | 3/4 in Cutter Dia | 0.03 in Corner Radius | 4 in Overall Length | 1-5/8 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 45 deg Helix Angle | Cylindrical Shank | ANSI Code: S545R-0.750-D2-R030.0-Z5 | ISO Code: S545R.750D2R030.0Z5 | Solid Carbide | AlTiN Coated
