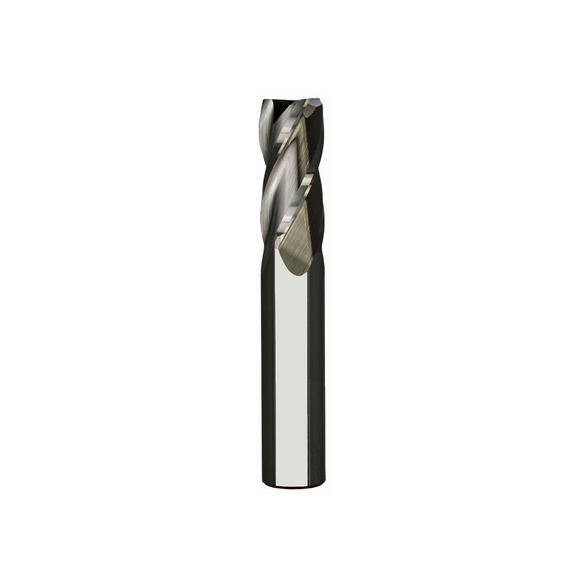

Niagara Cutter 17007169 C430R Center Cutting Short Length Single End End Mill, 1/2 in Dia Cutter, 1/8 in Corner Radius, 1 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL, TiAlN Coated
NIACUT 17007169
$79.72
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Mill Diameter - Decimal: 0.5 in
- Mill Diameter - Fractional: 1/2 in
- Mill Diameter - Metric: 12.7 mm
- Corner Radius: 1/8 in
- Number of Flutes: 4
- Material: Carbide
- Length of Cut: 1 in
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Overall Length: 3 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Variable Index: No
- Centercutting: Center Cutting
- Chipbreaker: No
- Corner Radius - Fractional: 1/8 in
- Cutter Diameter: 1/2 in
- Diameter: 1/2 in
- End Type: Corner Radius
- Finish: TiAlN Coated
- Finish/Coating: TiAlN
- Flute Direction: Right Hand
- Length of Cut - Decimal: 1 in
- Length of Cut - Metric: 25.4 mm
- Overall Length - Decimal: 3 in
- Overall Length - Metric: 76.2 mm
- Series: C430R
- Shank Type: Cylindrical
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/2 in
- Diameter - Fractional: 1/2 in
- Diameter - Metric: 12.7 mm
- Diameter - Decimal: 0.5 in
- Type: Center Cutting
- Standard with radius
General Purpose Applications
Niagara Cutter End Mill | Center Cutting Short Length Single End | Series: C430R | 1/2 in Cutter Dia | 1/8 in Corner Radius | 3 in Overall Length | 1 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 1/2 in Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: C430R-0.500-D2-R125.0-Z4 | ISO Code: C430R.500D2R125.0Z4 | Solid Carbide | TiAlN Coated
