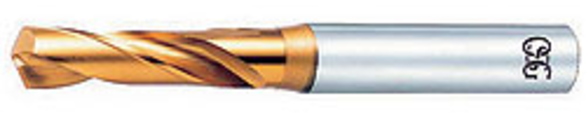

OSG 10343805 11/32 In, 130 Degree, 42 mm, Screw Machine Length Drill Bit
OSG 10343805
$79.63
/ EA
Out of Stock
- Drill Bit Size - Fractional: 11/32 in
- Cutting Direction: Right Hand
- Shank Type: Straight
- Overall Length: 3-1/2 in
- Cutting depth - Fractional: 1-11/16 in
- Cutting Edge Material: HSS-CO
- Finish: TiN Coated
- Flute Length: 1-11/16 in
- Flute Length - Metric: 42 mm
- Flute Type: Spiral
- Length Type: Stub
- Material: HSS-CO
- Number of Flutes: 2
- Overall Length - Metric: 88 mm
- Point Angle: 130
- Point Type: R-Thinning
- Series: 1000
- Shank Length: 1-9/16 in
- Shank Size: 3/8
The Ex-Gold Drill Line Is Famous Worldwide For Its Incredible Performace In Nearly All Material Families. From Cast Iron And Hardened Alloy Steel To Manual Machines Or Cnc Controls, This Drill Has The Toughness And Durability To Perform. Available In Stub And Jobber Lengths In A Complete Stocked Size Offering.
- Radial Point Thinning No Center Drills Neeeded. Achieves High Accuracy While Reducing Drill Thrust Force For Longer Tool Life
- Hss-Cobalt Substrate Added Hardness Versus Ordinary Hss, Yet Exceptional Toughness Provides Exceptional Versatility In Any Application
- Titanium Nitride Coating Increased Hardness And Lubricitiy Inceases Wear Resistance Thereby Extending Tool Life.
Application:Cast Aluminum, Cast Iron, Carbon Steel, Alloy Steel, Die Steel, Hardened Steel < 45 Hrc.Proven Cost-Effective In Any Application, From Small Run Jobs To Large Scale Production Runs.Easily Reground And Recoated By Osg'S Local Regrind Service
Osg 10343805 11/32 In | 130 Degree | 42 Mm | Cobalt | High Performance | Screw Machine Length Drill Bit
