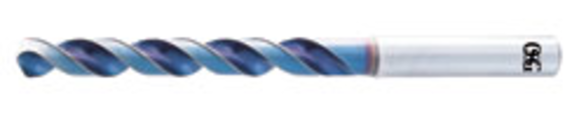

OSG 16511915 1/8 in, 130 Degree, Vanadium High Speed Steel, Jobber Length Drill Bit
- Drill Bit Size - Fractional: 1/8 in
- Flute Type: Fast Spiral
- Cutting Direction: Right Hand
- Shank Type: Straight
- Coolant Through: No
- Overall Length: 68.0 mm
- Cutting Edge Material: HSS-E
- Cutting Width Tolerance: 36 mm
- Finish: WD1 Coated
- Flute Length: 36 mm
- Flute Length - Metric: 36 mm
- Material: HSS-E
- Number of Flutes: 2
- Overall Length - Metric: 68 mm
- Point Angle: 130
- Point Type: S-Thinning
- Series: 1650
- Shank Size: 4 mm Dia
- Spiral Type: Fast Spiral
The Nexus drill line is a high performance drill line designed for high performance gummy materials, like stainless steel. Its high helix and refine X-thinning point geometry yield incredible sharpness, which make it the ideal solution for processing soft materials. Available in stub and jobber lengths and features OSG's proprietary WD1 drill coating technology, which permits faster speeds and longer tool life in stainless steel applications.
- X-Thining Point Geometry
- No center drills needed. Achieves high accuracy high shearing forces ideal in gummy materials
- HSS-Vanadium Substrate
- Added heat resistance via 3% Vanadium content yields superior performance to standard High Speed Steel drills
- OSG's WD1 Nano Coating
- Higher coating oxidation temp & hardness dramatically improve wear resistance
Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Low Carbon Steel, Stainless SteelIn applications where internal coolant supply is not possible, EX-SUS-Gold drill is the absolute most cost-effective solution for Stainless Steel.Any drilling application where you cannot locate an "in-between" diameter size in anyone else's drill offering.
OSG 16511915 1/8 in | 130 Degree | Vanadium High Speed Steel | WD1 | Right Hand | Jobber Length Drill Bit
