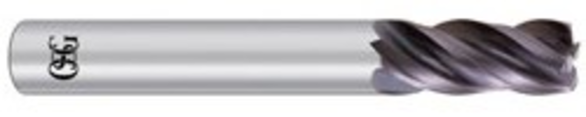

OSG 205296411 0.015 in Corner Rad, 1/2 in Mill Dia, 1-1/4 in LOC, 3-1/4 in OAL, 4 Flutes, Micrograin Carbide, EXO® Coated, Corner Radius & Corner Chamfer End Mill
OSG 205296411
$127.27
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Corner Radius: 0.015 in
- Number of Flutes: 4
- Material: Micrograin Carbide
- Length of Cut: 1-1/4 in
- Shank Diameter: 1/2 in
- Shank Diameter - Decimal: 0.5 in
- Shank Diameter - Fractional: 1/2 in
- Shank Diameter - Metric: 12.7 mm
- Overall Length: 3-1/4 in
- Cutting Direction: Right Hand
- Helix Angle: Variable
- Cutter Diameter: 1/2 in
- Diameter: 1/2 in
- End Type: Corner Radius
- Extended Reach: No
- Finish: EXO® Coated
- Finish/Coating: EXO® Coated
- Length of Cut - Fractional: 1-1/4 in
- Length Type: Long Length
- Mill Diameter Tolerance: +0 / -0.0015 in
- Overall Length - Fractional: 3-1/4 in
- Series: 2052
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/2 in
- Diameter - Fractional: 1/2 in
- Diameter - Metric: 12.7 mm
- Diameter - Decimal: 0.5 in
- Shank Type: Weldon Flat
The EXOCARB® AERO UVX end mills are designed to excel in stainless steels ensuring chatter-free milling. Its variable lead of the peripheral cutting edge and unequal spacing of end teeth suppress vibration and provide highly efficient milling.
- Variable lead of the peripheral cutting edge and unequal spacing of end teeth
- Provides efficient milling and suppresses vibration
- Ideal flute shape
- Enables smooth chip evacuation and depth of cut
- Multi-layered TiAlN Coating
- Multiple layers provide superior resistance to thermal cracking from heat, versus other mono-layered coatings
- Ultra-fine Micrograin Carbide
- Smaller grain size yield more wear resistance and better coating adhesion properties for extended tool life
Application:Carbon Steel, Alloy Steel, Tool SteelStainless SteelTi-AlloysNi-Alloys
OSG 205296411 0.5000 in Dia | 4 Flute | Carbide | 0.0150 in | EXO | Corner Radius & Corner Chamfer End Mill
