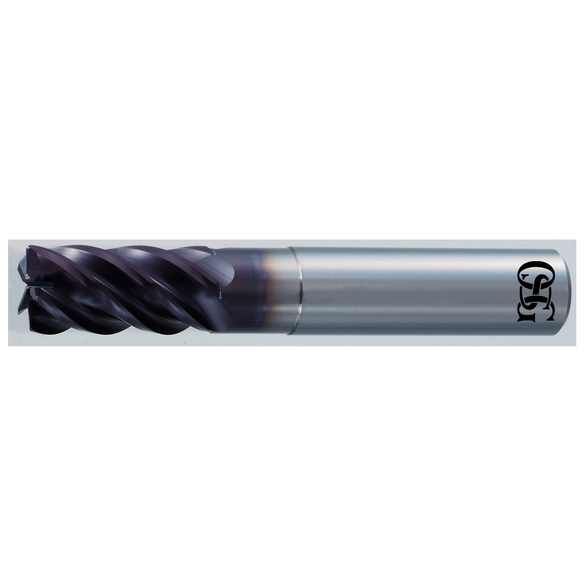

OSG 21064611 0.12 in Corner Rad, 5/8 in Mill Dia, 1-7/8 in LOC, 4 in OAL, 5 Flutes, Carbide, EXO® Coated, Corner Radius & Corner Chamfer End Mill
OSG 21064611
$347.14
/ EA
Out of Stock
- Mill Diameter: 5/8 in
- Corner Radius: 0.12 in
- Number of Flutes: 5
- Material: Carbide
- Length of Cut: 1-7/8 in
- Shank Diameter: 5/8 in
- Shank Diameter - Fractional: 5/8 in
- Overall Length: 4 in
- Cutting Direction: Right Hand
- Helix Angle: Variable
- Cutter Diameter: 5/8 in
- Cutter Diameter - Fractional: 5/8 in
- End Type: Center Cutting
- Finish: EXO® Coated
- Finish/Coating: EXO® Coated
- Length of Cut - Fractional: 1-7/8 in
- Length Type: Long Length
- Mill Diameter Tolerance: +0 / -0.002 in
- Series: 2106
- Shank Type: Shrink Fit
- Flute Type: Spiral
With the EXOCARB® AERO-UVX-Ti stable and high efficiency milling of titanium alloy is now possible. The EXOCARB® AERO UVX-Ti series offers solutions for slot milling and complicated pocket milling.
- Unequal Spacing of End Teeth
- For stable, vibration-free milling
- Variable Lead
- For efficient milling and suppressed vibration
- Ideal Flute Shape
- For smooth chip evacuation
- Web Taper
- For increased rigidity and high efficient milling
Application:Titanium AlloysStainless Steels
OSG 21064611 0.6250 in Dia | 5 Flute | Carbide | 0.1200 in | EXO | Corner Radius & Corner Chamfer End Mill
