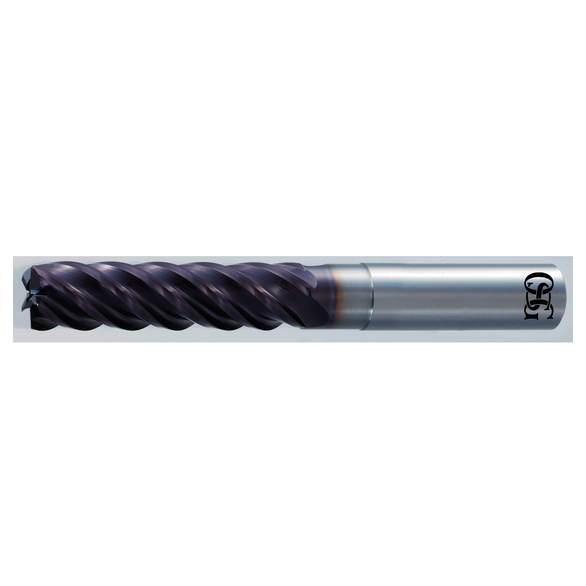

OSG 21081311 0.03 in Corner Rad, 1 in Mill Dia, 2 in LOC, 5-1/2 in OAL, 5 Flutes, Carbide, EXO® Coated, Corner Radius & Corner Chamfer End Mill
OSG 21081311
$603.17
/ EA
Out of Stock
- Mill Diameter: 1 in
- Corner Radius: 0.03 in
- Number of Flutes: 5
- Material: Carbide
- Length of Cut: 2 in
- Shank Diameter: 1 in
- Shank Diameter - Fractional: 1 in
- Overall Length: 5-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: Variable
- Cutter Diameter: 1 in
- End Type: Center Cutting
- Finish: EXO® Coated
- Finish/Coating: EXO® Coated
- Mill Diameter Tolerance: +0 / -0.002 in
- Neck Diameter: 0.98 in
- Neck Diameter - Decimal: 0.98 in
- Overall Length - Fractional: 5-1/2 in
- Series: 2108
- Shank Type: Shrink Fit
- Length Type: Regular Length
- Flute Type: Spiral
With the EXOCARB® AERO-UVX-Ti stable and high efficiency milling of titanium alloy is now possible. The EXOCARB® AERO UVX-Ti series offers solutions for slot milling and complicated pocket milling.
- Unequal Spacing of End Teeth
- For stable, vibration-free milling
- Variable Lead
- For efficient milling and suppressed vibration
- Ideal Flute Shape
- For smooth chip evacuation
- Web Taper
- For increased rigidity and high efficient milling
Application:Titanium AlloysStainless Steels
OSG 21081311 1.0000 in Dia | 5 Flute | Carbide | 0.0300 in | EXO | Corner Radius & Corner Chamfer End Mill
