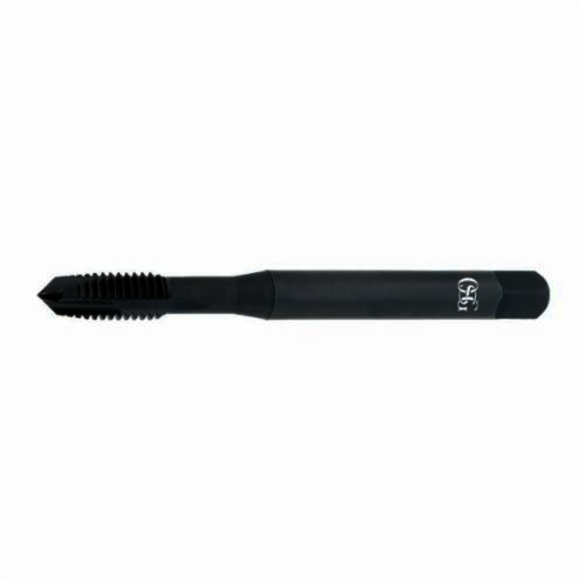

HY-PRO® 2532001 Spiral Point Gun Tap, Right Hand Cutting, 7/16-14 Thread, Plug Chamfer, 3 Flutes, Steam Oxide, HSS-E
OSG 2532001
$29.19
/ EA
Out of Stock
- Coolant Through: No
- Material Application: Aluminum, Alloy Steel, Carbon Steel, Cast Iron, Die Steel, Hardened Steel and Stainless Steel
- Overall Length: 3.937 in
- Shank Diameter - Decimal: 0.323 in
- Thread Standard: UNC
- Thread Size: 7/16-14
- Number of Flutes: 3
- Material: HSS-E
- Class of Fit: 2B
- Finish/Coating: Steam Oxide
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Measurement System: Imperial
- Overall Length - Metric: 100 mm
- Point Type: Spiral
- Series: 250
- Shank Length - Fractional: 2-5/8 in
Standards/Approvals: DIN Rated
For threading blind hole applications
HY-PRO Spiral Point Gun Tap | Series: 250 | Measurement System: Imperial | UNC | 7/16-14 | Plug Chamfer | 3 Flutes | HSS-E | Steam Oxide | Class of Fit: 2B | Right Hand Cutting | 1-7/16 in Thread Length | 100 mm Overall Length | 0.323 in Shank Dia | Aluminum | Alloy Steel | Carbon Steel | Cast Iron | Die Steel | Hardened Steel and Stainless Steel Material Application
