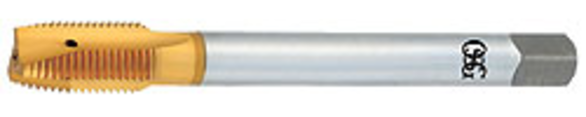

OSG 2633605 3/4-10 Size, UNC, 3 Flute, Spiral Point Tap
OSG 2633605
$163.70
/ EA
Out of Stock
- Coolant Through: Yes
- Material Application: Alloy Steel, Aluminum, Cast Aluminum, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel and Stainless Steel
- Shank Diameter - Decimal: 0.59 in
- Thread Length: 1.2 in
- Thread Standard: UNC
- Thread Size: 3/4-10
- Number of Flutes: 3
- Material: HSS-E
- Class of Fit: 2B
- Finish/Coating: TiN Coated
- Chamfer Type: 3.5P-4.5P Plug
- Cutting Direction: Right Hand
- Measurement System: Imperial
- Overall Length - Decimal: 4.92 mm
- Series: 260
- Shank Length - Fractional: 3-3/16 in
- Size: 3/4
HY-PRO® DIN is the original "Do it All" premium spiral point tap for a wide range of materials.
- HSSE material
- Increased wear resistance
- Spiral Point
- For through hole applications
- Steam Oxide surface treatment
- S/O increases mechanical lubricity
- DIN Overall Length
- Provides additional reach capability
- Inch & Metric
- Complete Offering
Application: High Carbon Steel, Alloy SteelCast iron, Carbon Steels, Die Steels, Stainless Steels, Hardened Steel ~35 HrC
OSG 2633605 3/4-10 Size | UNC | 3 Flute | 2B | TiN | Spiral Point Tap
