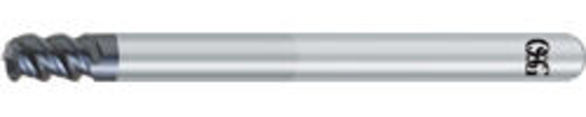

OSG 3092063 1.5 mm Corner Rad, 6 mm Mill Dia, 9 mm LOC, in OAL, Flutes, , , Corner Radius & Corner Chamfer End Mill
OSG 3092063
$322.41
/ EA
Out of Stock
- Mill Diameter: 6 mm
- Corner Radius: 0.0591 in
- Number of Flutes: 3
- Material: Carbide
- Length of Cut: 9 mm
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.2362 in
- Shank Diameter - Metric: 6 mm
- Overall Length: 100 mm
- Cutting Direction: Right Hand
- Helix Angle: 55 deg
- Corner Radius Tolerance: +0.03mm / -0.03mm
- Cutter Diameter: 6 mm
- Diameter: 0.23622 in
- Diameter - Decimal: 0.23622 in
- Diameter - Metric: 6 mm
- End Type: Corner Radius
- Extended Reach: Yes
- Finish: WXS® Coated
- Finish/Coating: WXS® Coated
- Flute Type: Spiral
- Length of Cut - Metric: 9 mm
- Length Type: Deep Feed
- Mill Diameter Tolerance: +0.01mm / -0.01 mm
- Neck Diameter: 0.2283 in
- Neck Diameter - Decimal: 0.2283 in
- Neck Diameter - Metric: 5.80 mm
- Neck Length: 54 mm
- Overall Length - Metric: 100 mm
- Reach Length: 54 mm
- Series: 9576
- Shank Type: Shrink Fit
- Cutter Diameter - Metric: 6 mm
- Type: Center Cutting
The EXOPRO® PHX end mill series is designed exclusively for mold makers, to help them realize greater cost savings and shorter delivery times with their existing equipment. New spiral gash geometry is combined with radial chip thinning principles to create end mills capable of taking deeper depths of cut with length to diameter ratio's previously thought impractical.
- Spiral Gash geometry
- Increases edge strength and reduces chip thickness
- OSG's WXSnano coating
- WXSboasts the absolute highest hardness and heat resistance of any OSG coating
- Available in a wide variety of shapes and lengths
- To reach any mold cavity or core
- Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
- WXS? is a nano-technological coating thatresists higher temperatures than TiAlN. It is commonly used on nonferrous materials and hardened steels. WXS? is a proprietary coating exclusive to OSG Tap and Die, Inc.
OSG 3092063 0.2362 in Dia | 3 Flute | Carbide | 0.0591 in | WXS | Corner Radius & Corner Chamfer End Mill
