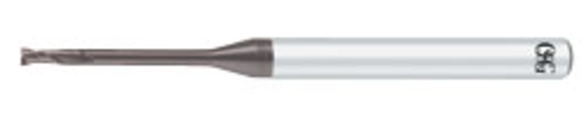

OSG 3103003 0.2 mm Corner Rad, 3 mm Mill Dia, 2.5 mm LOC, in OAL, Flutes, , , Corner Radius & Corner Chamfer End Mill
OSG 3103003
$128.87
/ EA
Out of Stock
- Mill Diameter: 3 mm
- Number of Flutes: 2
- Material: Carbide
- Length of Cut: 2.5 mm
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.23622 in
- Shank Diameter - Metric: 6 mm
- Overall Length: 60 mm
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 3 mm
- Cutter Diameter - Metric: 3 mm
- Diameter: 0.11811 in
- Diameter - Decimal: 0.11811 in
- End Type: Center Cutting
- Finish: WXS® Coated
- Finish/Coating: WXS® Coated
- Flute Type: Spiral
- Length of Cut - Decimal: 2.5 mm
- Length Type: Rib Processing
- Neck Diameter: 0.1122 in
- Neck Diameter - Metric: 2.85 mm
- Overall Length - Metric: 60 mm
- Series: 4592
- Shank Type: Shrink Fit
- Diameter - Metric: 3 mm
- Type: Center Cutting
- Neck Diameter - Decimal: 0.1122 in
EXOCARB®-WXS end mills are the new industry standard for hard milling. Everything about WXS is designed for rigidity and performance in hardened steel 50 HRC and greater. Substrates, geometry, and proprietary WXS coating are all specifically tailored for hardened steels like D2, A2, S7, H13 and CPM.
- Ultra-fine micrograin carbide The hardest most wear resistant carbide possible for incredible wear resistance
- High Precision geometry - All corner radius & ball mills have +/-5um radius tolerance High accuracy all but eliminates need for benching and rework for mold makers
- High strength core diameter Tools utilize thicker core diameters for the ultimate in strength and rigidity
- WXS coating - +1300 Celsius Oxidation Temp. & +3500Hv in hardness Higher coating oxidation temp & hardness dramatically improve wear resistance..
OSG 3103003 0.1181 in Dia | 2 Flute | Carbide | 0.0079 in | WXS | Corner Radius & Corner Chamfer End Mill
