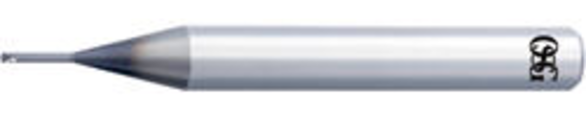

OSG 3191007 0.1 mm Corner Rad, 1 mm Mill Dia, 0.4 mm LOC, in OAL, Flutes, , , Corner Radius & Corner Chamfer End Mill
OSG 3191007
$128.22
/ EA
Out of Stock
- Mill Diameter: 1 in
- Corner Radius: 0.0039 in
- Number of Flutes: 4
- Material: Carbide
- Length of Cut: 0.4 mm
- Shank Diameter: 4 mm
- Shank Diameter - Decimal: 0.1575 in
- Shank Diameter - Metric: 4 mm
- Overall Length: 50 mm
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Corner Radius Tolerance: +0.01 / -0.01 mm
- Cutter Diameter: 1 in
- Diameter: 0.0394 in
- Diameter - Decimal: 0.0394 in
- Diameter - Metric: 1 mm
- End Type: Corner Radius
- Extended Reach: Yes
- Finish: WXS® Coated
- Finish/Coating: WXS® Coated
- Length of Cut - Decimal: 0.4 mm
- Length Type: Pencil Neck
- Mill Diameter Tolerance: +0 / -0.01 mm
- Neck Diameter: 0.0374 in
- Neck Diameter - Decimal: 0.0374 in
- Neck Diameter - Metric: 0.95 mm
- Overall Length - Metric: 50 mm
- Reach Length: 6 mm
- Series: 9592
- Shank Type: Shrink Fit
- Type: Center Cutting
- Flute Type: Spiral
- Neck Length: 6 mm
The EXOPRO® PHX end mill series is designed exclusively for mold makers, to help them realize greater cost savings and shorter delivery times with their existing equipment. New spiral gash geometry is combined with radial chip thinning principles to create end mills capable of taking deeper depths of cut with length to diameter ratio's previously thought impractical.
- Spiral Gash geometry
- Increases edge strength and reduces chip thickness
- OSG's WXSnano coating
- WXSboasts the absolute highest hardness and heat resistance of any OSG coating
- Available in a wide variety of shapes and lengths
- To reach any mold cavity or core.
OSG 3191007 0.0394 in Dia | 4 Flute | Carbide | 0.0039 in | WXS | Corner Radius & Corner Chamfer End Mill
