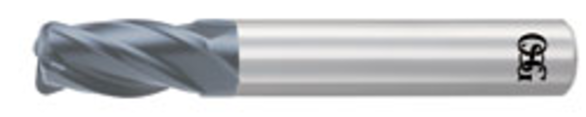

OSG 36700511 0.01 in Corner Rad, 1/8 in Mill Dia, 1/2 in LOC, 1-1/2 in OAL, 4 Flutes, Carbide, WXL® Coated, Corner Radius & Corner Chamfer End Mill
OSG 36700511
$46.27
/ EA
Out of Stock
- Mill Diameter: 1/8 in
- Mill Diameter - Decimal: 0.125 in
- Mill Diameter - Fractional: 1/8 in
- Corner Radius: 0.01 in
- Number of Flutes: 4
- Material: Carbide
- Length of Cut: 1/2 in
- Shank Diameter: 1/8 in
- Shank Diameter - Decimal: 0.1250 in
- Shank Diameter - Fractional: 1/8 in
- Shank Diameter - Metric: 3.175 mm
- Overall Length: 1-1/2 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Variable Index: No
- Center Cutting: Yes
- Cutter Diameter: 1/8 in
- Cutter Diameter - Fractional: 1/8 in
- Diameter: 1/8 in
- Diameter - Decimal: 0.125 in
- Diameter - Fractional: 1/8 in
- End Type: Corner Radius
- Extended Reach: No
- Finish: WXL® Coated
- Finish/Coating: WXL
- Length of Cut - Fractional: 1/2 in
- Length Type: Regular Length
- Material Grade: Micrograin
- Mill Diameter Tolerance: +0 / -0.0008 in
- Overall Length - Fractional: 1-1/2 in
- Series: 3670
- Series/List: 3670
- Shank Type: Shrink Fit
- Single or Double End: Single End
- Variable Helix: No
- Flute Type: Spiral
- Diameter - Metric: 3.175 mm
- Flute Direction: Right Hand
EXOCARB® WXL end mills are the new industry standard for hard milling. Everything about WXL is designed for rigidity and performance in wide variety of materials and a wide variety of milling applications. Substrates, geometry, and proprietary WXL coating are all specifically tailored for nonferrous materials, mild steels, and steels up to 50HRC.
- Ultra-fine micrograin carbide
- The hardest ost wear resistant carbide possible for incredible wear resistance
- High Precision geometry - All Corner Radius End Mills have +/-5um radius tolerance
- High accuracy all but eliminates need for benching and rework for mold makers
- High strength core diameter
- Tools utilize thicker core diameters for the ultimate in strength and rigidity
- WXL coating - +1100 Celsius Oxidation Temp. & +3100Hv in hardness
- Higher coating oxidation temp & hardness dramatically improve wear resistance.
Standard/Approvals:Micrograin
Application:Ideally suited for Hardened steel < 50 HRC.Also works in: Cast Iron, Carbon Steel, Alloy Steel, Alloy Steel, Die Steel, Copper Alloys and Aluminum Alloys.Use in combination with High Speed Machining Techniques to optimize performance.
OSG 36700511 0.1250 in Dia | 4 Flute | Carbide | 0.0100 in | WXL | Corner Radius & Corner Chamfer End Mill
