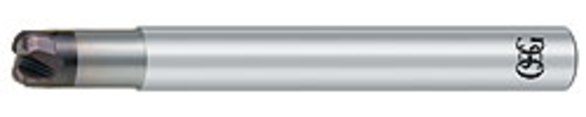

OSG 44700211 1/16 in Corner Rad, 3/16 in Mill Dia, 0.09 in LOC, 2-1/4 in OAL, 3 Flutes, Carbide, WXS® Coated, Corner Radius & Corner Chamfer End Mill
OSG 44700211
$163.94
/ EA
Out of Stock
- Mill Diameter: 3/16 in
- Number of Flutes: 3
- Material: Carbide
- Length of Cut: 0.09 mm
- Shank Diameter: 1/4 in
- Shank Diameter - Decimal: 0.25 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 2-1/4 in
- Cutting Direction: Right Hand
- Helix Angle: 0 Degree
- Cutter Diameter: 3/16 in
- Diameter: 3/16 in
- Diameter - Fractional: 3/16 in
- End Type: Center Cutting
- Finish: WXS® Coated
- Finish/Coating: WXS® Coated
- Length of Cut - Decimal: 0.09 mm
- Material Grade: Micrograin
- Neck Diameter: 0.18 in
- Neck Diameter - Decimal: 0.18 in
- Neck Diameter - Metric: 4.572 mm
- Overall Length - Fractional: 2-1/4 in
- Series: 4470
- Shank Type: Shrink Fit
- Length Type: Regular Length
- Flute Type: Straight
- Cutter Diameter - Fractional: 3/16 in
- Diameter - Decimal: 0.1875 in
- Diameter - Metric: 4.762 mm
EXOCARB®-WXS end mills are the new industry standard for hard milling. Everything about WXS is designed for rigidity and performance in hardened steel 50 HRC and greater. Substrates, geometry, and proprietary WXS coating are all specifically tailored for hardened steels like D2, A2, S7, H13 and CPM.
- Ultra-fine micrograin carbide
- The hardest most wear resistant carbide possible for incredible wear resistance
- High Precision geometry - All corner radius & ball mills have +/-5um radius tolerance High accuracy all but eliminates need for benching and rework for mold makers
- High strength core diameter
- Tools utilize thicker core diameters for the ultimate in strength and rigidity
- WXS coating - +1300 Celsius Oxidation Temp. & +3500Hv in hardness Higher coating oxidation temp & hardness dramatically improve wear resistance.
OSG 44700211 3/16 in Dia | 3 Flute | Carbide | 1/16 in | WXS | Corner Radius & Corner Chamfer End Mill
