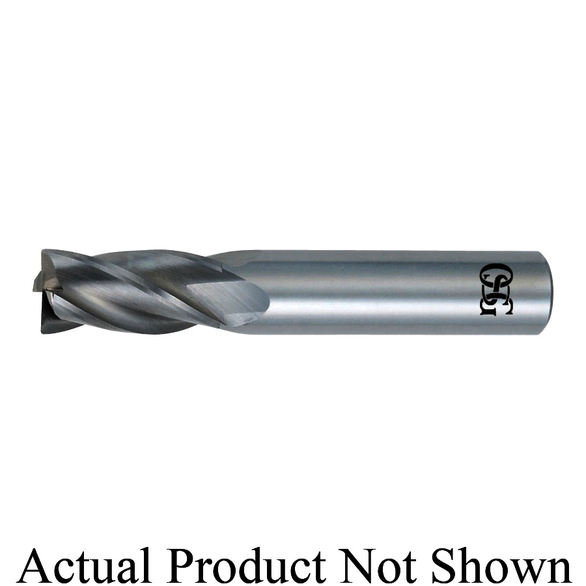

OSG 496-500611 0.06 in Corner Rad, 1/2 in Mill Dia, 1 in LOC, 3 in OAL, 4 Flutes, Micrograin Carbide, TiAlN Coated, Corner Radius & Corner Chamfer End Mill
OSG 496-500611
$77.01
/ EA
Out of Stock
- Mill Diameter: 1/2 in
- Number of Flutes: 4
- Material: Micrograin Carbide
- Length of Cut: 1 in
- Shank Diameter: 1/2 in
- Shank Diameter - Fractional: 1/2 in
- Overall Length: 3 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 1/2 in
- End Type: Center Cutting
- Finish: TiAlN Coated
- Finish/Coating: TiAlN Coated
- Series: 496
- Shank Type: Straight
- Length Type: Regular Length
- Flute Type: Spiral
- Cutter Diameter - Fractional: 1/2 in
The standard carbide end mill lineup consists of a variety of different end mill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision.
Application: Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.
OSG 496-500611 1/2 in Dia | 4 Flute | Carbide | 0.0600 in | TiALN | Corner Radius & Corner Chamfer End Mill
