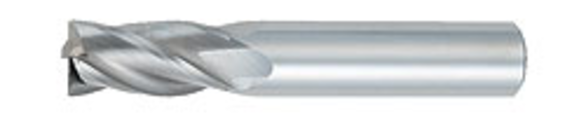

OSG 496-7506 0.06 in Corner Rad, 3/4 in Mill Dia, 1-1/2 in LOC, 4 in OAL, 4 Flutes, Micrograin Carbide, Bright, Corner Radius & Corner Chamfer End Mill
OSG 496-7506
$153.41
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Number of Flutes: 4
- Material: Micrograin Carbide
- Length of Cut: 1-1/2 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 19.05 mm
- Overall Length: 4 in
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Diameter: 3/4 in
- Diameter - Decimal: 0.75 in
- Diameter - Fractional: 3/4 in
- End Type: Center Cutting
- Finish/Coating: Bright
- Length of Cut - Fractional: 1-1/2 in
- Length Type: Regular Length
- Series: 496
- Shank Type: Straight
- Type: Center Cutting
- Flute Type: Spiral
- Diameter - Metric: 19.05 mm
- Finish: Bright
The standard carbide end mill lineup consists of a variety of different end mill designs, made to OSG quality standards at a value-added price point that is friendly to any tooling budget. An economical solution without sacrificing consistent tolerancing and precision.
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Application: Used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
OSG 496-7506 3/4 in Dia | 4 Flute | Carbide | 0.0600 in | Bright | Corner Radius & Corner Chamfer End Mill
