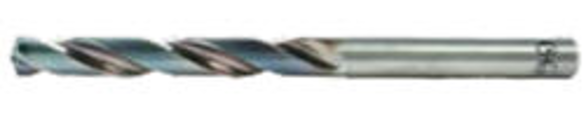

OSG A Brand® ADO 651037511 High Performance Jobber Length Drill Bit, 3/8 in Drill - Fraction, 9.53 mm Drill - Metric, 0.375 in Drill - Decimal Inch, 140 deg Point, Carbide, EgiAs Coated
- Drill Bit Size - Fractional: 3/8 in
- Flute Type: Spiral
- Cutting Direction: Right Hand
- Shank Type: Straight
- Coolant Through: Yes
- Overall Length: 136 mm
- Cutting Edge Material: Carbide
- Finish: EgiAs Coated
- Flute Length: 76 mm
- Flute Length - Metric: 76 mm
- Number of Flutes: 2
- Overall Length - Metric: 136 mm
- Point Angle: 140
- Point Type: R-Thinning
- Series: 6510
- Shank Size: 9.5 mm Dia x 60 mm L
- Material: Carbide
The A Brand® ADO drill series is OSG's premium line of carbide coolant-fed high performance drills, designed to drill in a variety of steels up to 50X diameter without pecking. New point geometry creates sharp cutting action for reduced thrust forces, while our proprietary EgiAs coating provides drastically higher hardness and heat resistance, enabling higher drilling speeds and incredible tool life.
- OSG's EgiAs Nano Coating Technology
- Wavy form cutting edge design
- Internal coolant holes
Application: Aluminum Alloy, Cast Aluminum, Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel <50HRCHoles up to 50X diameter in depth, where coolant-through is an option.Any application where productivity and the lowest cost-per-hole is the goal.
OSG 651037511 3/8 in | 140 Degree | Solid Carbide | EgiAs | Right Hand | Jobber Length Drill Bit
